AMPHENOL COMMUNICATIONS SOLUTIONS MDBRE09PMAN0 Rugged D-Sub Connector
The MDBR series Rugged D-sub connectors by Amphenol are designed for harsh environments, offering high durability with IP68 protection, and feature high-quality gold-plated contacts. They support multiple configurations including 9, 15, and 26 positions with various termination options such as vertical PCB tails and solder cups suitable for up to 20 AWG and 22 AWG wires. Made from RoHS compliant materials, these connectors withstand extreme temperatures from -40°C to +105°C, ensuring reliable performance in industrial, outdoor, and automation applications. The connectors have a robust die-cast zinc shell providing strength and durability, ideal for demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS MDBRE09PMAN0 Rugged D-Sub Connector Specifications:
- Connector size: 9, 15, or 26 positions
- Material: Copper alloy contacts, die cast zinc shell, thermoplastic housing, silicone rubber gasket
- Plating: Gold over nickel on contacts; nickel plating on shell
- Maximum current: 5A for standard density, 3A for high density
- Maximum voltage: 200V DC or 125V AC per contact
- Temperature range: -40°C to +105°C
- Contact resistance: 20 mΩ max
- Insulation resistance: 5 GΩ at 200V DC for 60 seconds
- Durability: 500 mating cycles
- Protection: IP68 in mated and unmated states
- Operating temperature: -40°C to +105°C
- RoHS compliant

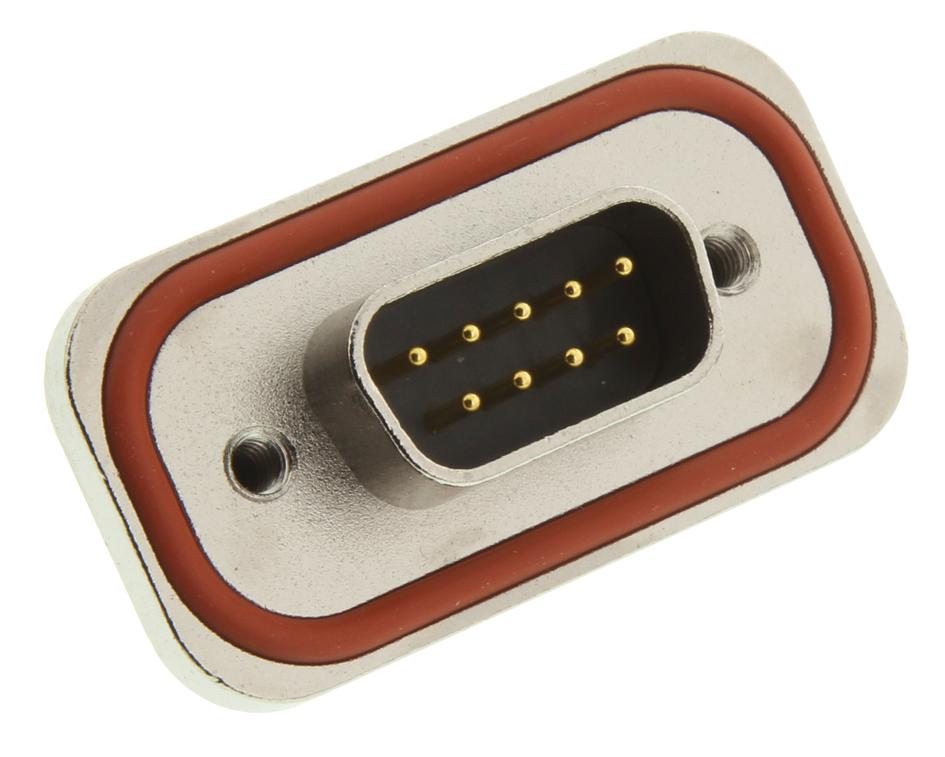

Buy the Buy Amphenol Rugged D-Sub Connector Part Number MDBRE09PMAN0 Online
Discover the rugged durability of Amphenol D-sub connectors designed for harsh environments. Available in 9, 15, and 26 positions with various termination options like vertical PCB tails and solder cups, these connectors feature IP68 protection for outdoor and industrial applications. Constructed from RoHS-compliant materials, they withstand extreme temperatures from -40°C to +105°C, providing reliable electrical performance with up to 500 mating cycles. Perfect for outdoor, automation, industrial, and military environments seeking robust, corrosion-resistant, and high-quality connectors.
Buy Amphenol MDBRE09PMAN0 now and experience unmatched durability and reliable high-performance connections in toughest environments.
