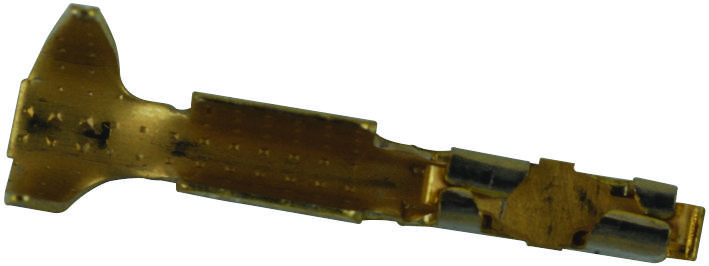

AMPHENOL COMMUNICATIONS SOLUTIONS 48236000LF Wire-to-Board Connector
The Mini PV series high-durability and high-retention wire-to-board connector system reliably connects discrete wires to printed circuit boards. It features high-reliability dual-metal receptacle terminals that plug into industry-standard 0.025-inch square posts. The system offers various options for containment, protection, and guidance on both sides of the connector interface. The wire side utilizes PV® receptacle terminals which can be terminated directly to wires or inserted into multi-circuit MINI-LATCH connector housings with optional polarizing keys. The printed circuit side includes shrouded, multi-post headers with an integral friction feature that secures the mating MINI-LATCH housings, reducing disengagement risk. The connector design allows for three different spring pressure options, enabling customization of insertion and withdrawal forces for specific applications. Key features include a dual-metal PV® contact that maintains consistent contact pressure through 1,000 mating cycles, a beryllium copper spring providing high normal force, and a brass contact body enabling reliable, gas-tight crimp termination. The MINI-LATCH housings actively retain the PV® wire contacts and are available in single or double row configurations. Polarization is achieved through keyed housings and header keyways to prevent mis-mating. The two-wall header design offers mechanical advantages and cost efficiency. This connector operates within a temperature range of -40°C to 105°C and is suitable for use in consumer electronics, sensing and instrumentation, medical, defense, military, aerospace, communications, networking, and industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 48236000LF Wire-to-Board Connector Specifications:
- Contact material: Brass body and beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0, glass filled nylon UL94V-0
- Current rating: 3.0A with 32 AWG wire; de-rating applies for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ for wire connector, >5000MQ for PCB header
- Contact resistance: <2mQ
- Mating force: High force spring 450g; Ultra-high force spring 100g
- Un-mating force: High force spring 75g; Ultra-high force spring 175g
- Durability: 1000 cycles
- Temperature range: -40°C to +105°C
Buy the FCI Series PV: 48236000LF Wire-to-Board Connector System
Purchase the FCI wire-to-board connector system online today to ensure reliable, high-performance connections for your electronic applications. This system features dual-metal contacts for long-lasting durability, customizable spring force options for tailored insertion and withdrawal forces, and keyed housings for accurate polarization to prevent mis-mating. Its robust design supports up to 1000 mating cycles, operates from -40°C to 105°C, and is suitable for a wide range of industries including consumer electronics, medical, military, and industrial sectors. Buy now for quality and reliability.
Get FCI 48236000LF high-reliability wire-to-board connector system today—designed for enduring performance and precise connections.
