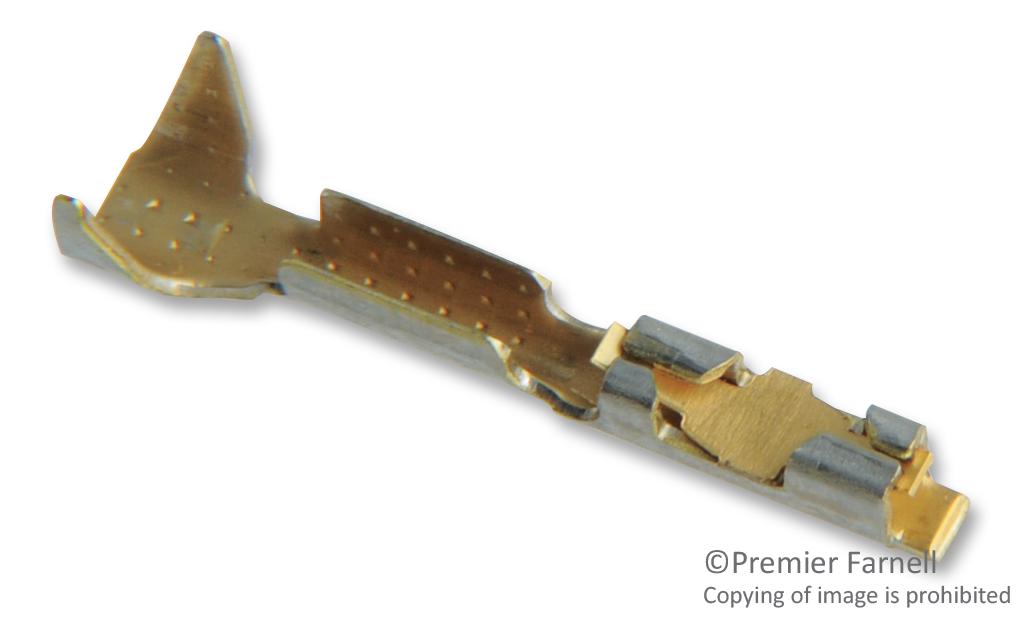

AMPHENOL COMMUNICATIONS SOLUTIONS 48238000LF Wire-to-Board Connector

The Mini PV series high-durability and high-retention wire-to-board connector system facilitates reliable connection between discrete wires and printed circuit boards. It features high-reliability dual-metal receptacle terminals that plug into industry-standard 0.025-inch square posts. The system offers various containment, protection, and guidance options on both sides of the connector interface. Wire-side PV® receptacle terminals can be terminated directly to wires or inserted into multiple-circuit MINI-LATCH connector housings, which include optional polarizing keys for proper alignment. The printed circuit side includes shrouded headers with integral friction features to securely grip the mating housings and reduce disengagement risk. Users can select from three spring pressure options to customize insertion and withdrawal forces according to their application needs. Key features include a dual-metal PV® receptacle contact maintaining contact integrity through 1,000 mating cycles, a beryllium copper spring providing high normal force, and a brass contact body ensuring gas-tight crimp terminations. The MINI-LATCH housing securely retains PV® wire contacts and is available in single or double row configurations. Polarization is facilitated through keyed housings and header keyways to prevent mis-mating. The two-wall header design offers mechanical benefits and cost efficiency. Operating temperature ranges from -40°C to 105°C, making this connector suitable for a wide range of applications, including consumer electronics, sensing and instrumentation, medical devices, defense, military and aerospace, communications, networking, and industrial equipment.

View 48238000LFDatasheet [pdf]

Buy the Amphenol-Communications-Solutions Series Wire-to-Board Connector 48238000LF

Purchase the FCI PV wire-to-board connector system online today and experience high reliability, excellent durability, and flexible options for your industrial, medical, and consumer electronics projects. Designed for ultimate performance, this connector features dual-metal receptacle terminals, polarized housing options, and a wide temperature range of -40°C to 105°C. Its robust construction ensures up to 1000 mating cycles while providing excellent electrical performance with 3.0A current capacity and 1000V withstand voltage. Simple to install with application-specific tooling, this system offers cost-effective solutions for various industry needs. Shop now for fast delivery and quality assurance.

Get FCI PV wire-to-board connector today—built for precision, durability, and reliable performance in demanding applications.
