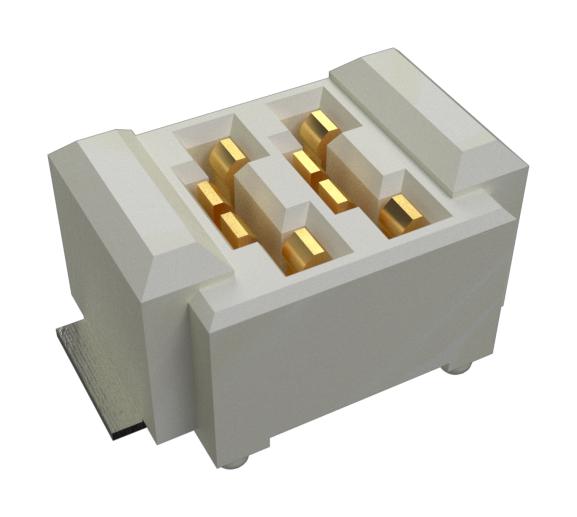

AMPHENOL COMMUNICATIONS SOLUTIONS 10159561200121RLF Board-to-Board Connectors
The PowerStak and ComboStak board-to-board connectors are compact hybrid solutions enabling high current and signal transmission in space-saving designs. PowerStak® offers up to 20A per power blade with configurations supporting 2 to 10 power blades and 6 to 140 signal pins, ideal for applications requiring reliable electrical performance up to 125°C. Constructed with high-temperature LCP housing, copper alloy contacts, and gold or GXT plating, these connectors ensure durability through 200 mating cycles and meet industrial standards such as USCAR-2 V2. Their design supports blind mating, self-alignment, and high vibration resistance, suitable for automotive, networking, datacom, and industrial markets.
AMPHENOL COMMUNICATIONS SOLUTIONS 10159561200121RLF Board-to-Board Connectors Specifications:
- Housing: LCP UL94-VO
- Power contact: Copper alloy
- Signal contact: Copper alloy
- Plating: Nickel under plate; contact area gold or GXT; solder tail gold or tin; hold down tin
- Current Rating: 20A max per power contact; 0.8A per signal contact
- Voltage Rating: 100V DC
- Insulation Resistance: 1000MΩ min
- Insertion/Withdrawal Force: Up to 6N max per power contact; 0.9N max per signal contact; withdrawal force >= 0.8N per power contact; >= 0.1N per signal contact
- Durability: 200 cycles
- Operating Temperature Range: -40°C to +125°C
- Shock and Vibration: USCAR-2 V2 compliant
- Environmental: Humidity 90-96% for 240 hours; High Temperature Life: 105°C for 1000 hours
- Technical Standards: GS-12-1675, GS-20-0696
- Packaging: Tape & Reel, Tube
Buy the Amphenol PowerStak – Reliable Hybrid Connectors for Industrial Applications
Purchase your PowerStak and ComboStak board-to-board connectors now through our online store to ensure high-quality, reliable, space-saving electrical connections for automotive, industrial, networking, and data communications. These connectors support high current capacity up to 20A per blade, feature a robust design for vibration and shock resistance, and meet environmental standards for durability and safety. Easy to install with blind mating and self-alignment capabilities, they are ideal for demanding applications requiring durable, high-performance interconnect solutions. Shop online today and keep your projects powered reliably.
Order your Amphenol PowerStak connectors today and enhance your industrial projects with dependable high-current and signal integrity solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10159561200121RLF?
You can click on the BUY or RFQ button to purchase 10159561200121RLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10159561200121RLF?
You can download the 10159561200121RLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10159561200121RLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
