AMPHENOL COMMUNICATIONS SOLUTIONS 48252000LF Wire-to-Board Connector
The PV wire-to-board connector system features a dual-metal crimp receptacle design that ensures high reliability and durability over 1000 mating cycles. Compatible with industry-standard 0.025-inch square posts, it offers flexible options with polarized MINI-LATCH housings, shrouded headers, and various configurations. Made from materials like brass, beryllium copper, and polyphenylene oxide, it supports up to 3A per circuit, withstands voltages of 1000V RMS, and operates across -40°C to +105°C. Perfect for industrial, medical, automotive, and communications applications, it ensures secure connections and easy tooling compatibility.
AMPHENOL COMMUNICATIONS SOLUTIONS 48252000LF Wire-to-Board Connector Specifications:
- Contact material: Brass body and beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0 and glass-filled nylon UL94V-0
- Number of positions: 1 to 72, single and double row options available
- Maximum wire diameter: 1.52mm
- Current rating: 3.0A per circuit with 32 AWG wire
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact resistance: <2mQ
- Mechanical durability: 1000 cycles
- Temperature range: -40°C to +105°C
- Approvals: URE66906, CSALR46923

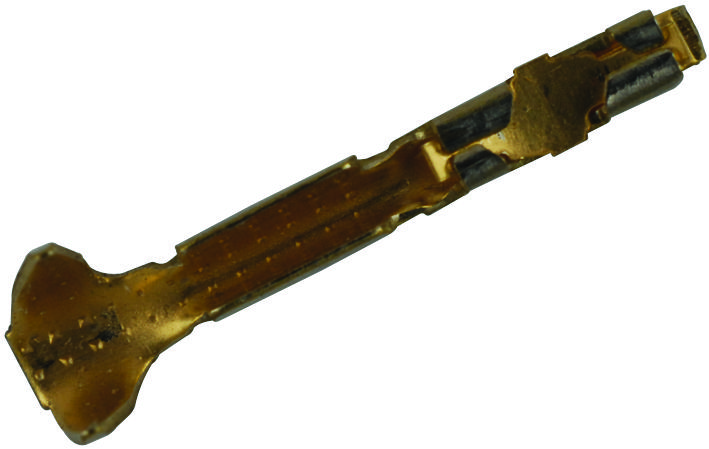

Buy the Buy FCI Wire-to-Board Connector Part Number 48252000LF Online
Experience the reliability and durability of the FCI wire-to-board connector system, designed for high cycle counts and secure connections. Its dual-metal crimp contact maintains consistent contact pressure over 1000 mating cycles, ensuring dependable performance in industrial, medical, automotive, and communication equipment. Made from high-quality materials including brass, beryllium copper, and UL94V-0 rated plastics, it supports wire sizes up to 1.52mm and withstands voltages up to 1000V. Its polarized MINI-LATCH housings and shrouded headers provide secure engagement, easy mating, and polarization to prevent mis-mating, making it an ideal solution for demanding electronic assemblies.
Get FCI 48252000LF today—built for precision, long-lasting durability, and reliable electronic connections for industrial and automotive applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 48252000LF?
You can click on the BUY or RFQ button to purchase 48252000LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 48252000LF?
You can download the 48252000LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 48252000LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
