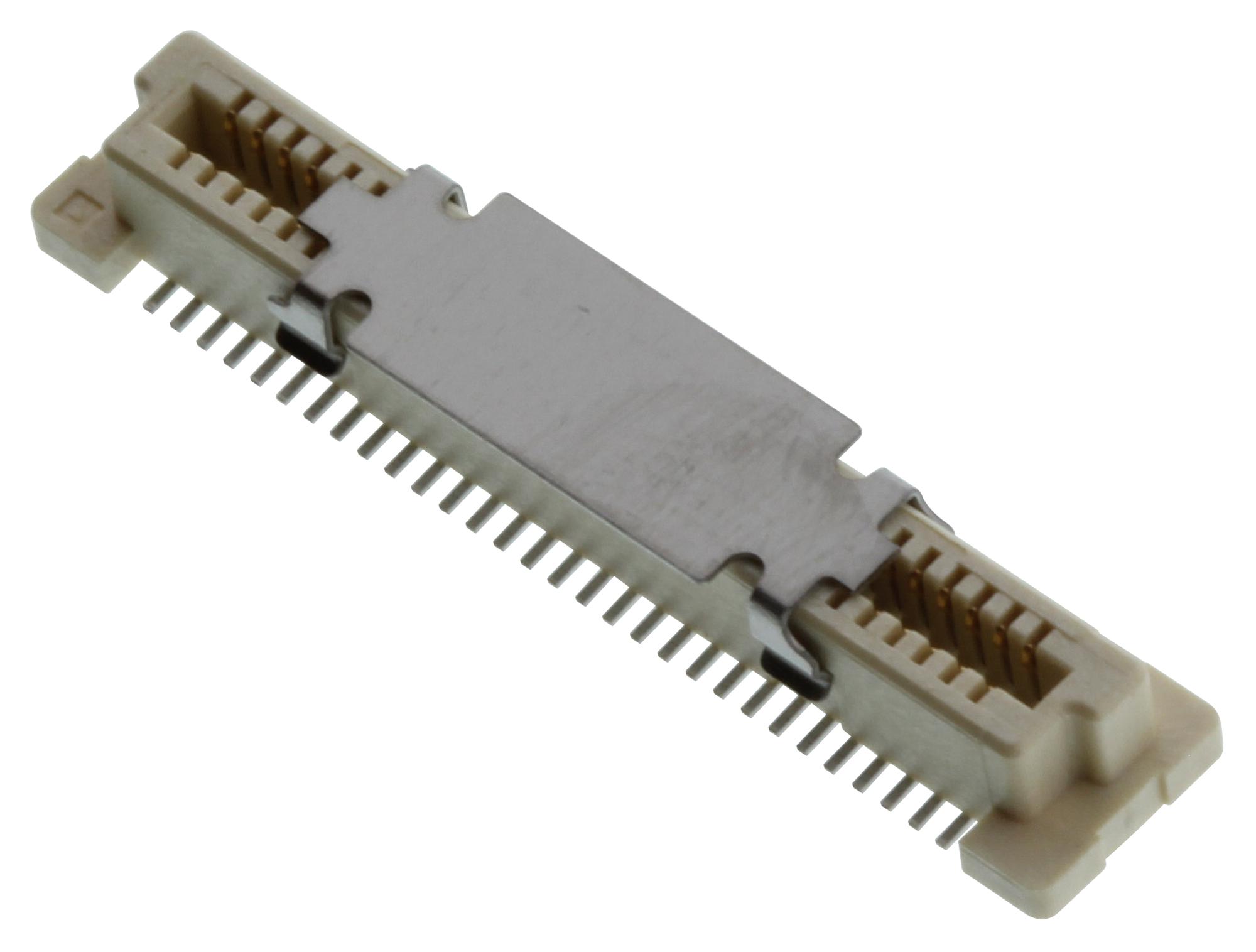

AMPHENOL COMMUNICATIONS SOLUTIONS 61082061409LF Mezzanine connector
The BergStak® 0.8mm Mezzanine Connector from Amphenol-ICC offers a high-density, flexible board-to-board connection solution supporting data rates up to 12Gb/s. It features a durable glass-filled LCP housing, gold-plated contacts, and multiple size options from 40 to 200 positions with stack heights ranging from 5mm to 20mm. Designed for high-speed, parallel stacking applications, it is compliant with RoHS and UL94V-0 standards, providing reliable mating, environmental resistance, and easy assembly for sophisticated electronic systems including servers, industrial equipment, and test systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082061409LF Mezzanine connector Specifications:
- Housing: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy, High Spring
- Contact Finish: Gold or Gold flash over Palladium-nickel, Solder Area Finish: Matte pure Tin over Nickel
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Voltage Rating: 100VAC
- Current Rating: 0.8A/contact
- Impedance Range: 81 to 108Q @ 50 ps edge
- Return Loss: < 10dB up to 5GHz
- Temperature Range: -40°C to +125°C
- High Temperature Life: 105°C for 1000 hours
- Humidity: 90-95% for 96 hours
- Certifications: UL £66906, RL46923
- Packaging: Tape & Reel, Tubes
- Applicable for high-speed data and parallel stacking applications
- Suitable for telecom, servers, industrial, and testing systems
Buy the Buy Amphenol BergStak® 0.8mm Mezzanine Connector Part Number 61082061409LF Online
Purchase the BergStak® 0.8mm Mezzanine Connector from Amphenol-ICC online to ensure reliable high-speed connections for your electronic systems. Designed for high-density applications, this connector supports data rates up to 12Gb/s, features durable gold-plated contacts, and offers multiple sizes from 40 to 200 positions with stack heights from 5mm to 20mm. Ideal for telecom, servers, and industrial equipment, it provides exceptional mating reliability, environmental resistance, and easy assembly, making it the perfect choice for high-performance electronic designs.
Get Amphenol BergStak® 0.8mm Mezzanine Connector today—built for high-speed data transmission and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61082061409LF?
You can click on the BUY or RFQ button to purchase 61082061409LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61082061409LF?
You can download the 61082061409LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61082061409LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
