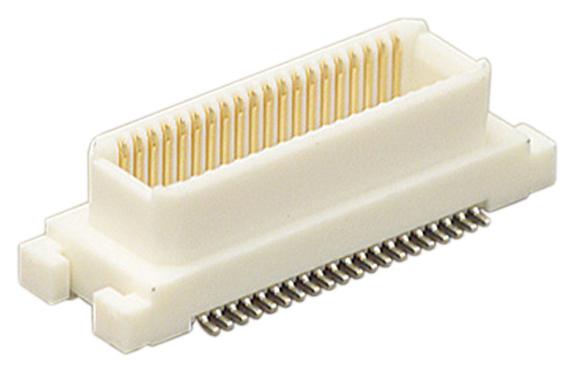

AMPHENOL COMMUNICATIONS SOLUTIONS 61083041402LF Mezzanine Connector
The BergStak® 0.8mm Mezzanine Connector by Amphenol is designed for high-density, high-speed, parallel board-to-board connections supporting up to 12Gb/s. It features a flexible range with 16 PCB stack heights from 5mm to 20mm, accommodating 40 to 200 positions in 20-position increments. Made from UL94V-0 materials, it offers durable gold or palladium-nickel finishes, low mating force, and environmental compliance including RoHS. Its precision design ensures reliable mating, anti-reverse features, and suitability for high-performance applications like servers, networking, and industrial equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 61083041402LF Mezzanine Connector Specifications:
- Housing Material: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy (Receptacle), Brass (Plug)
- Contact Area Finish: Gold or Palladium-Nickel over Nickel
- Solder Area Finish: Matte pure Tin over Nickel
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Insulation Resistance: Initial 10MΩ min., after test 100MΩ min.
- Current Rating: 0.8A per contact
- Voltage Rating: 100VAC
- Impedance Range: 81 to 108Ω @ 50 ps edge
- Return Loss: < 10dB up to 5GHz
- Environmental: -40°C to +125°C, high temp life 105°C for 1000 hours, humidity 90-95%
- Certifications: UL Listed, GS-12-547
- Packaging: Tape & Reel, Tubes
Buy the Buy Amphenol BergStak 0.8mm Mezzanine Connector Part Number 61083041402LF Online
Purchase the BergStak 0.8mm Mezzanine Connector from Amphenol online today and enjoy a reliable, high-density, high-speed interconnect solution suitable for demanding applications. With support for 12Gb/s data transmission, 40 to 200 positions, and multiple stack heights, this connector ensures flexibility and durability in your electronic and industrial projects. Made from UL94V-0 materials and RoHS compliant, it guarantees safety, environmental compliance, and long-term performance. Ideal for servers, industrial equipment, routers, and high-performance computing systems, it offers excellent mating reliability and low insertion forces for easy assembly.
Buy Amphenol BergStak 0.8mm Mezzanine Connector now and experience unmatched high-speed performance with reliable high-density board-to-board connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61083041402LF?
You can click on the BUY or RFQ button to purchase 61083041402LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61083041402LF?
You can download the 61083041402LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61083041402LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
