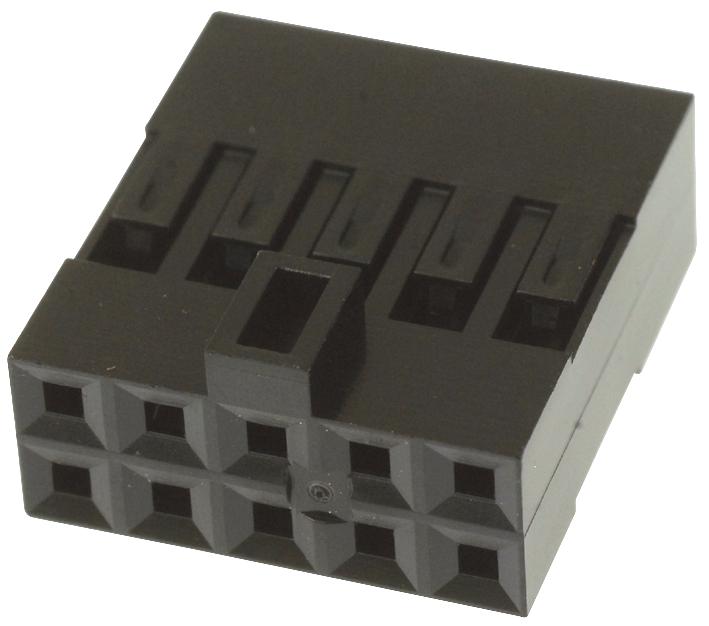

AMPHENOL COMMUNICATIONS SOLUTIONS 69176010LF Mini-PV Receptacle
The 69176-010LF is a 10-contact, two-row, black Mini-PV™ receptacle with vertical orientation and polarization key. Designed for wire sizes 22 to 36 AWG, it features a PPE + PS housing, supporting reliable connections. Mating with 0.635mm square pins of 5.33mm to 6.1mm length, it offers high insulation resistance of 5000 MΩ and can withstand 1000 VAC RMS voltage. Ideal for industrial, communication, and automation applications, ensuring durability, safety, and secure mating interfaces.
AMPHENOL COMMUNICATIONS SOLUTIONS 69176010LF Mini-PV Receptacle Specifications:
- Number of contacts: 10
- Orientation: Vertical
- Housing material: PPE + PS
- Contact material: Brass with gold plating
- Mating pin size: 0.635mm square
- Pin length: 5.33mm to 6.1mm
- Voltage rating: 1000 VAC RMS
- Insulation resistance: 5000 MΩ
- Color: Black
- Supported wire range: 22-36 AWG
- Temperature Range: -40°C to +105°C
- Durability: 1000 mating cycles
Buy the Miniature Connector 69176-010LF – Reliable Crimp-to-Wire for Industrial Applications
Enhance your industrial wiring systems with the reliable Mini-PV Receptacle. Designed for 22-36 AWG wires, it features high dielectric strength, excellent insulation resistance, and durable construction for long-term performance. Compatible with standard 0.635mm square pins and supporting up to 1000 VAC RMS, this two-row, polarization key-equipped connector ensures secure and precise connections in automation, communication, and control systems. Order online today and secure dependable connectivity for your critical applications.
Buy FCI 69176-010LF now and experience unmatched reliability and performance in industrial wiring solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69176010LF?
You can click on the BUY or RFQ button to purchase 69176010LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69176010LF?
You can download the 69176010LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69176010LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
