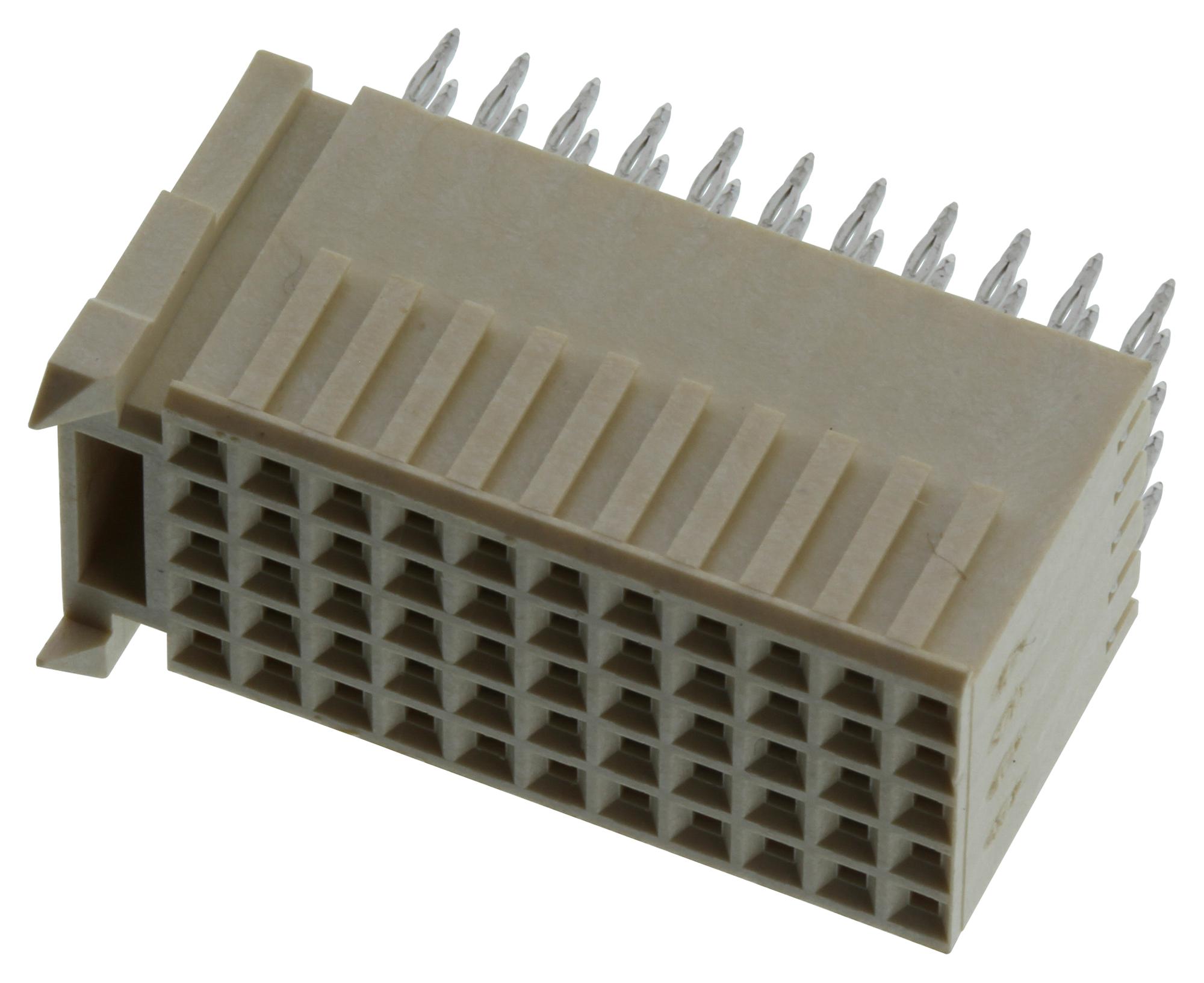

AMPHENOL COMMUNICATIONS SOLUTIONS HM2S30PE5100N9LF Vertical Receptacle Connector
The Millipacs 2mm Hard Metric series vertical receptacle connector provides robust, scalable, and high-performance board-to-board and cable-to-board interconnections. Designed according to IEC standards, it features high-temperature polymers, gold/palladium nickel on mating areas, and tin over nickel contacts. With electrical ratings up to 1.5A at 20°C and test voltage of 750 Vrms, it offers reliable performance for high-bandwidth communication, industrial, medical, and power applications. Its modular design supports multiple configurations, including extended heights, shielding, and customized loading patterns, ensuring flexibility and durability in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2S30PE5100N9LF Vertical Receptacle Connector Specifications:
- Insulator material: High-Temperature polymer
- Contact material: Copper Alloy
- Contact plating: Gold/Palladium nickel on mating areas, Tin over Nickel on press-fit areas
- Operating current: 1.5A at 20°C
- Test voltage: 750 Vrms
- Contact resistance: 20 mΩ max
- Insulation resistance: 10 MΩ min
- Operating temperature: -55°C to +125°C
- Mating force: 0.75 N max per contact pair
- Withdrawal force: 0.15 N min per contact pair
- Misalignment tolerance: Longitudinal +2.0mm, Transversal +2.5mm
- Inclination: +2.0°
- Designed in accordance with IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE
- Fits DIN 43356 and IEEE 1301 Hard Metric standards
- Packaging: Tray
Buy the FCI Series HM2S30PE5100N: 2mm Hard Metric Vertical Receptacle Connector
Experience the dependable performance of the FCI Series HM2S30PE5100N vertical receptacle connector. Engineered for high current and voltage capabilities, it supports up to 1.5A at 20°C and withstands test voltages up to 750 Vrms. Its durable high-temperature polymer insulator and gold/palladium nickel-plated contacts provide excellent electrical reliability. Perfect for applications in communications, medical, industrial, and power systems requiring scalable, modular, and robust interconnections. Order online now for fast delivery and high-quality integration.
Order your FCI Series HM2S30PE5100N 2mm Vertical Receptacle Connector today and ensure reliable, high-performance interconnections for industrial, medical, and communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2S30PE5100N9LF?
You can click on the BUY or RFQ button to purchase HM2S30PE5100N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2S30PE5100N9LF?
You can download the HM2S30PE5100N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2S30PE5100N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
