AMPHENOL COMMUNICATIONS SOLUTIONS 65801013LF Flexible Circuit Connector
The Clincher connector family offers single-row pin and receptacle connectors designed for reliable termination to flat flexible circuitry, including FFC, FPC, and conductive ink circuits. These connectors ensure gas-tight, contamination-free connections with four contact points per conductor using proven Mini PV dual-metal contacts. Their design allows for easy crimp inspection, beveled openings reduce stubbing risk, and polarization options ensure proper mating alignment. Available in sizes from 2 to 34 positions, they support mass termination, feature positive-locking and latching, and are ideal for consumer electronics, industrial, sensing, and medical applications, delivering high reliability and efficiency.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801013LF Flexible Circuit Connector Specifications:
- Material: Polypropylene UL 94 V-0, Blue
- Contact body base metal: Receptacles: Cupro-nickel; Pin Headers: Phosphor Bronze
- Contact spring base metal: Beryllium Copper
- Plating, contact spring: 3u Gold/GXT or 10u lead-free
- Electrical Performance: Contact resistance max 10 mO, Insulation Resistance min 5000 MO, Withstanding voltage 1000 VAC RMS, Current Rating 2.0 amps
- Mechanical Performance: Mating force max 300 grams, Latch retention minimum 4 lbs, Contact retention min 30 grams, Cable retention 10 lbs/inch, Contact durability 100 mating cycles
- Cable: IPC Standard FC-220 B, Tolerance class IV, Max thickness 0.33mm, Insulation: Mylar or KAPTON polyimide, Conductor thickness 0.076mm, Width 1.57mm
- Dimensions and specifications are compliant with technical drawings TA-264, TA-371 and product specs BUS-12-021, BUS-12-022
- Tools include PV-219E semi-automatic machine, HT-0274 hand tool, and HT270 hand tool for various termination applications.

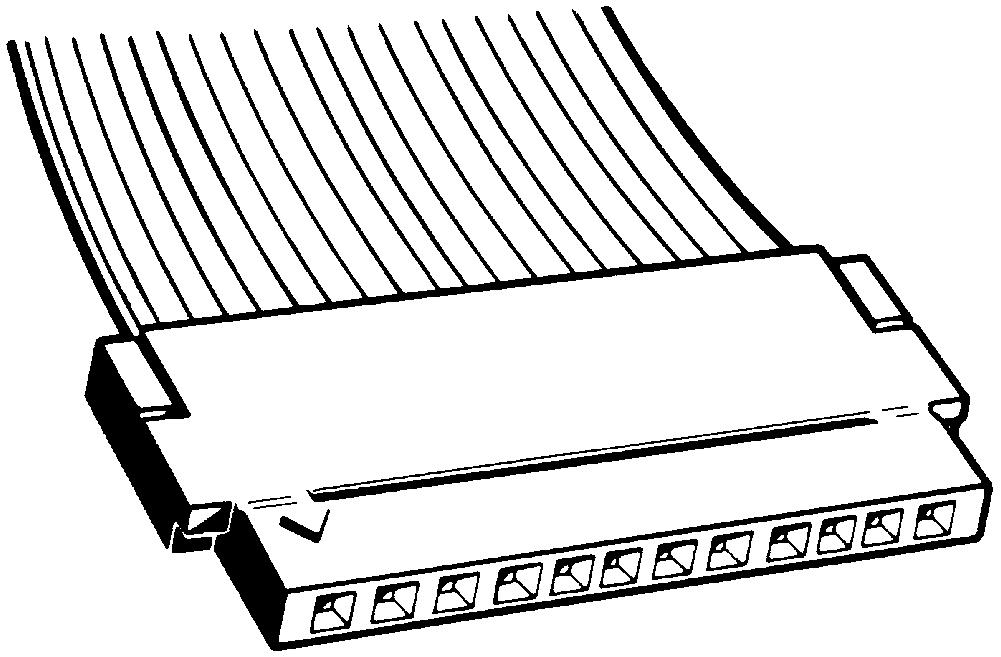

Buy the Buy FCI Clincher Connector Part Number 65801013LF Online
Purchase the FCI Clincher connector series online and streamline your flexible circuit assembly process. These connectors provide reliable, gas-tight, contamination-free termination with proven Mini PV contacts. Available in multiple sizes from 2 to 34 positions, they feature polarized options for proper alignment and secure mating. Ideal for consumer electronics, industrial automation, sensing, and medical applications, the connectors support mass termination, saving time and reducing costs. Order now to ensure high-quality, durable connections for your flexible circuitry needs.
Get FCI Clincher connector today—designed for high-reliability, gas-tight connections and efficient mass termination for flexible circuits.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801013LF?
You can click on the BUY or RFQ button to purchase 65801013LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801013LF?
You can download the 65801013LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801013LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
