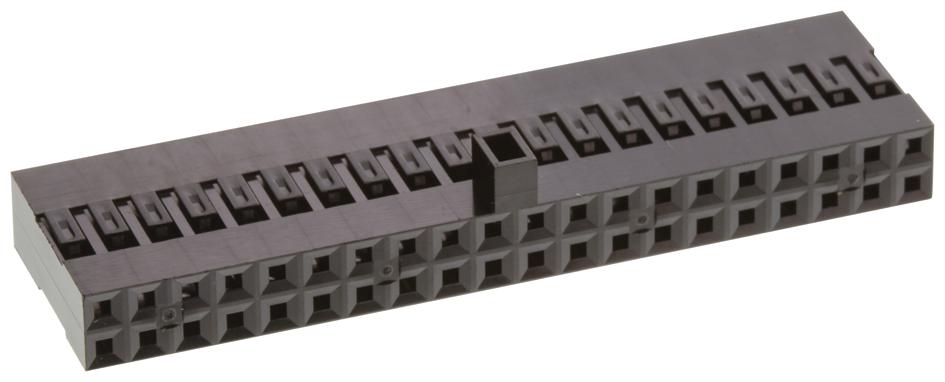

AMPHENOL COMMUNICATIONS SOLUTIONS 65846024LF Wire-to-Board Connector System
The Mini-PV 65846 series crimp-to-wire connector system connects wires to printed circuit boards with high reliability and durability. It features dual-metal receptacle terminals that fit industry-standard 0.025-inch square posts, with options for containment and guidance. PV® receptacle terminals can be crimped to wires or inserted into multi-circuit housings with polarizing keys to prevent mis-mating. The system includes shrouded headers with friction features for retention, using a beryllium copper spring to maintain contact pressure over 1,000 cycles. It is ideal for sensing, instrumentation, medical, aerospace, communications, automotive, and industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 65846024LF Wire-to-Board Connector System Specifications:
- Contact material: Brass body, beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0 (MINI-LATCH), Glass-filled nylon UL94V-0 (headers)
- Current rating: 3.0A with 32 AWG wire, de-rating applies for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10,000 MΩ (wire connector), >5,000 MΩ (header)
- Contact resistance: <2 mΩ
- Mating force: High force spring 450g, ultra-high force spring 100g
- Un-mating force: High force spring 75g, ultra-high force spring 175g
- Durability: 1000 mating cycles
- Temperature range: -40°C to +105°C
- Maximum wire diameter: 1.52mm
- Application approvals: URE66906, CSALR46923
Buy the Buy FCI PV Wire-to-Board Part Number 65846024LF Online
Purchase the FCI PV wire-to-board connector system online today to ensure high reliability in your electronic assembly. This robust, dual-metal contact system offers excellent durability with over 1,000 mating cycles, featuring secure polarizing keys and versatile configurations to suit your application. Whether for sensing, medical devices, automotive electronics, or industrial equipment, buying online guarantees quick delivery, competitive pricing, and trusted quality from a leading connector manufacturer. Simplify your assembly process by sourcing this reliable connector system today.
Buy FCI PV 65846024LF now and enjoy high contact reliability, durable design, and application versatility across automotive, medical, and industrial sectors.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65846024LF?
You can click on the BUY or RFQ button to purchase 65846024LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65846024LF?
You can download the 65846024LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65846024LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
