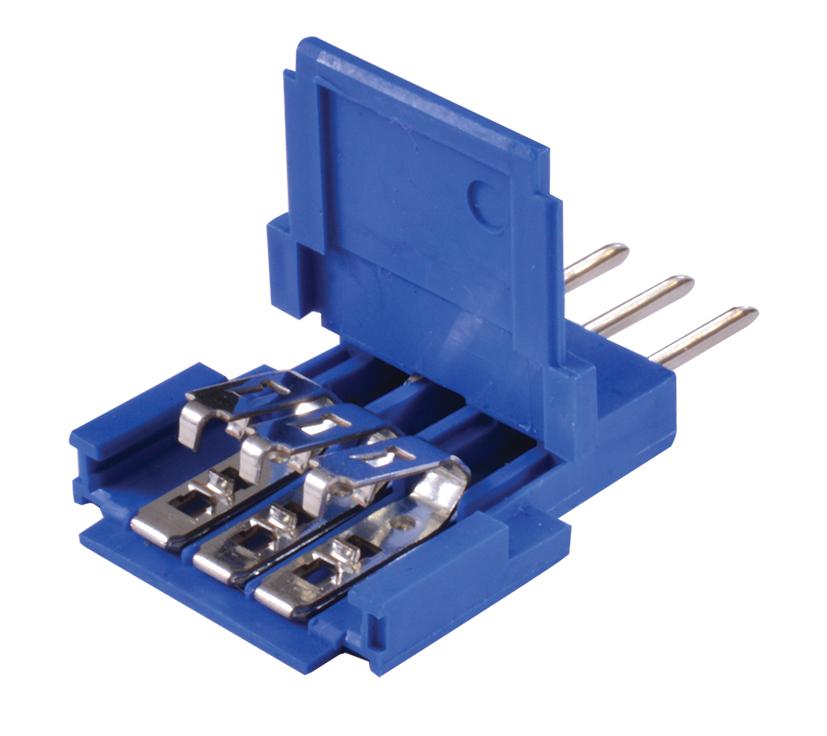

AMPHENOL COMMUNICATIONS SOLUTIONS 66226003LF Flexible Circuit Connector
The Clincher connector system offers highly reliable, gas-tight connections for flexible circuitry, including FFC, FPC, and conductive ink circuits. Featuring ‘Clinch’ termination for contamination-free contact, it includes various receptacle and pin series with gold or lead-free tin plating, suitable for industrial, medical, and consumer electronics. The system supports quick mass termination, secure locking, and high durability, ideal for applications demanding robust connections, such as appliances, displays, and instrumentation, ensuring simplified assembly and compliance with environmental standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 66226003LF Flexible Circuit Connector Specifications:
- Housing Material: Polypropylene UL 94 V-O, Blue
- Contact Body: Cupro-nickel (receptacles), Phosphor Bronze (pin headers)
- Contact Spring Material: Beryllium Copper
- Plating: 3u Gold/GXT or 10u lead-free
- Voltage Rating: 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Contact Resistance: Max 10 mO initially; 20 mO after environmental exposure
- Insulation Resistance: Min 5000 MO
- Mating Force: Max 300 grams per contact
- Un-mating Force: Min 4 lbs latch retention
- Cable Specification: IPC Standard FC-220 B, tolerance class IV
- Cable Thickness: Max 0.33mm including insulation
- Conductor Width: 1.57 +/- 0.07mm
- Operating Temperature: Not specified
- Durability: 100 mating cycles
Buy the Amphenol-Communications-Solutions Series Clincher Flexible Circuit Connector: 66226003LF
Explore the innovative Clincher connector system designed for flexible circuit termination. This reliable, gas-tight connection system simplifies assembly, reduces costs, and ensures durable, contamination-free contacts. Ideal for a wide range of applications including medical, industrial, and consumer electronics, our connectors feature high-quality materials, versatile series options, and easy mass termination tools. Enhance your manufacturing process with quick, secure, and environmentally compliant connectors known for their long-lasting performance and resistance to harsh environments.
Buy FCI Clincher connectors now and benefit from fast, secure, and environmentally compliant flexible circuitry connections for your industrial and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 66226003LF?
You can click on the BUY or RFQ button to purchase 66226003LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 66226003LF?
You can download the 66226003LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 66226003LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
