AMPHENOL COMMUNICATIONS SOLUTIONS 86094647113755ELF DIN 41612 Connector
The DIN 41612 connector series provides a durable and cost-effective solution conforming to DIN 41612 and IEC 603-2 standards, ideal for industrial, telecom, and data markets. Featuring 2.54mm pitch, modular design, and rear plug variants in press-fit applications, these connectors support up to 3 rows and 96 positions with solder, press-fit, and pin-in paste terminations. They include wide accessories, ensure adequate spacing for PCB trace routing, improve creepage distance, and offer customizable loading options, making them suitable for board-to-board and I/O connections in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 86094647113755ELF DIN 41612 Connector Specifications:
- Pitch: 2.54mm
- Current Rating at 20°C: 1.5A
- Maximum Current: 2A
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 10^9Ω
- Test Voltage (rms): 1000V
- Operating Temperature Range: -55°C to +125°C
- Materials: Polyester thermoplastic insulator, copper alloy contacts with gold over nickel or GXT® over nickel plating
- Assembly: Solder-to-board and press-fit options, rear plug variants
- Vibration & Shock: < Ips, < 40mΩ
- Certifications: UL, CSA approved
- Corrosion Resistance: Lead-free versions available

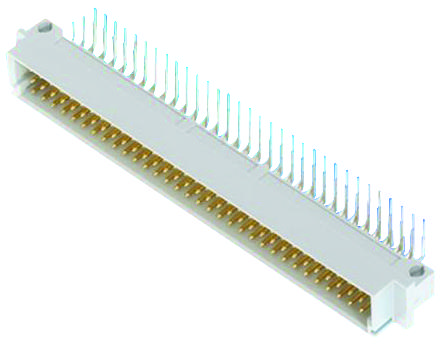

Buy the Buy Amphenol DIN 41612 Signal Headers Receptacles Part Number 86094647113755ELF Online
Order the Amphenol DIN 41612 connector today to ensure high-quality, reliable connections for industrial, telecom, and data systems. Designed with a modular system, it offers multiple termination options like solder and press-fit, supporting up to 3 rows and 96 positions. Its wide range of accessories including board-locks and shrouds ensures easy installation and extended mating capabilities. Engineered for durability, it withstands harsh environments with temperature ranges from -55°C to +125°C, making it ideal for demanding electronic and industrial applications.
Get Amphenol 86094647113755ELF today—built for reliable PCB connections with modular design and high durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 86094647113755ELF?
You can click on the BUY or RFQ button to purchase 86094647113755ELF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 86094647113755ELF?
You can download the 86094647113755ELF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 86094647113755ELF?
AMPHENOL COMMUNICATIONS SOLUTIONS
