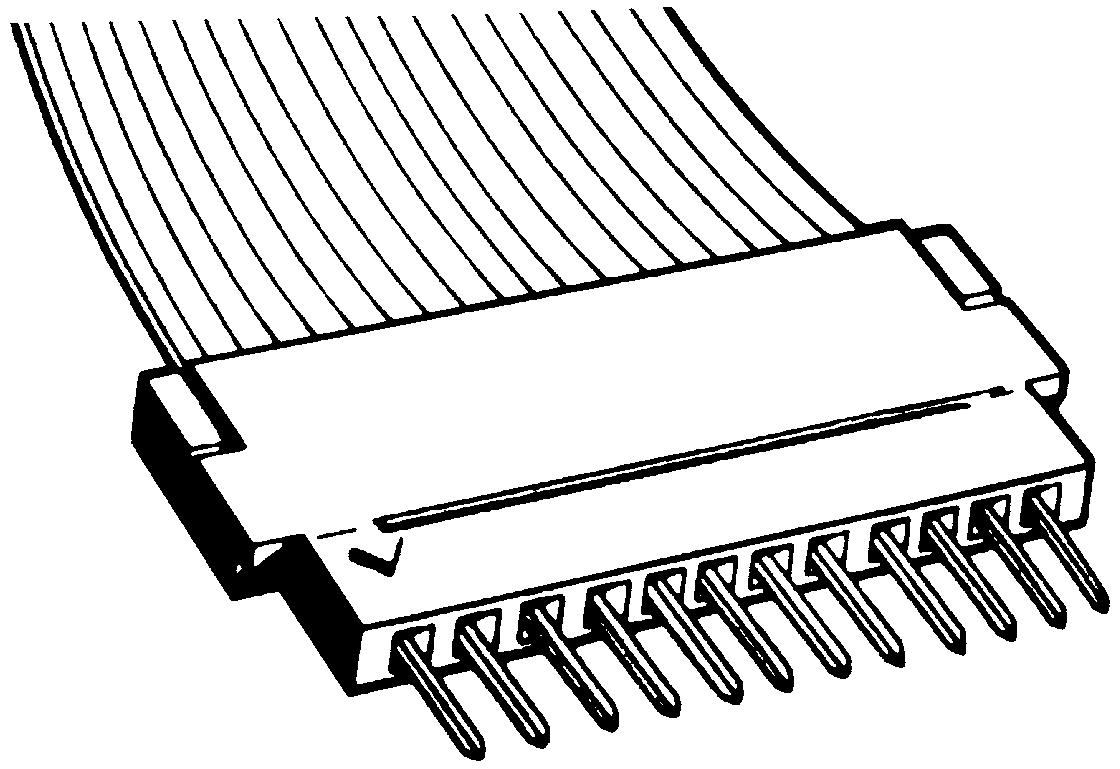

AMPHENOL COMMUNICATIONS SOLUTIONS 66226005LF Flexible Circuit Connector
The Clincher connector system offers reliable, low-cost termination solutions for flexible circuitry, including FFC, FPC, and CIC. Features include gas-tight crimps, Mini PV™ contact reliability, and various polarization options, ensuring secure, contamination-free connections ideal for industrial, medical, appliance, and POS applications. Design supports mass termination, easy inspection, and secure locking, with range options from 2 to 34 positions, plated options including gold and lead-free tin. Well-suited for automated assembly, these connectors deliver high performance, durability, and versatility in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 66226005LF Flexible Circuit Connector Specifications:
- Housing material: Polypropylene UL 94 V-O, Blue
- Contact body: Cupro-nickel (receptacles), Phosphor Bronze (pin headers)
- Contact spring material: Beryllium Copper
- Plating options: 3u Gold/GXT or 10u lead-free
- Electrical performance: Max contact resistance 10 mO, insulation resistance 5000 MO min, withstand voltage 1000 VAC RMS, current rating 2.0 amps
- Mechanical performance: Mating force max 300 grams per contact, latch retention minimum 4 lbs, contact retention minimum 30 grams, cable retention 10 lbs/inch, 100 mating cycles
- Cable specifications: IPC Standard FC-220 B, thickness 0.33mm, conductor width 1.57mm, conductor thickness ~0.076mm, insulation material Mylar or KAPTON Polyimide
- Environmental compliance: Meets industry standards, compatible with mass termination tools
Buy the FCI 66226005LF – Reliable Flexible Circuit Connectors for Industrial Applications
Enhance your assembly process with our high-reliability flexible circuit connectors. Designed for quick, secure, and contamination-free terminations, these connectors support automated and manual assembly, reducing costs while ensuring long-lasting performance. Their gas-tight crimps, dual-metal contacts, and polarized locking options make them ideal for demanding industrial, medical, and consumer electronics environments. Choose from various pricing/plating options like gold or lead-free tin, and enjoy assured quality that meets industry standards. Buy online now for fast delivery and effortless integration into your manufacturing workflow.
Get FCI 66226005LF today—built for precision, durability, and seamless flexible circuit terminations.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 66226005LF?
You can click on the BUY or RFQ button to purchase 66226005LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 66226005LF?
You can download the 66226005LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 66226005LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
