AMPHENOL COMMUNICATIONS SOLUTIONS 67954002LF Wire-to-Board Connector System
The Mini-PV 67954 series crimp-to-wire connector system facilitates reliable connection of discrete wires to printed circuit boards. It features high-reliability dual-metal receptacle terminals that connect to industry-standard 0.025-inch (0.635mm) square posts. The system offers various containment, protection, and guidance options for both connector sides. Wire-side PV® receptacle terminals can be terminated for discrete wiring or inserted into multiple-circuit MINI-LATCH connector housings with optional polarizing keys to ensure correct mating. The printed circuit side includes shrouded multi-post headers with an integral friction feature that securely grips the mating MINI-LATCH housings, reducing disengagement risk. The unique dual-metal PV® receptacle contacts maintain consistent contact pressure through 1,000 mating cycles. A beryllium copper spring provides high normal force at the interface, while the brass contact body ensures a gas-tight, reliable crimp termination. The MINI-LATCH housing firmly retains PV® wire contacts and is available in single or double row configurations. Keyed housings and header keyways provide polarization to prevent mis-mating. The two-wall header design offers mechanical benefits and cost efficiency. Suitable for applications in sensing, instrumentation, medical, avionics, defense, military, aerospace, communications, networking, automotive, consumer electronics, and industrial sectors.
AMPHENOL COMMUNICATIONS SOLUTIONS 67954002LF Wire-to-Board Connector System Specifications:
- Connector system supports industry-standard 0.025-inch (0.635mm) square posts
- Dual-metal PV® receptacle contacts maintain contact pressure for 1,000 mating cycles
- Beryllium copper spring provides high normal force; brass contact body for gas-tight crimp
- Available in single and double row configurations with polarized, keyed MINI-LATCH housings
- Housing materials: modified polyphenylene oxide and glass-filled nylon UL94V-0
- Temperature range: -40°C to +105°C; current rating: 3.0A per circuit with 32 AWG wire
- Insulation resistance: >10,000MQ (wire), >5,000MQ (header); mating voltage: 1000V RMS
- Mechanical retention includes integral friction grip and two-wall header design
- Contact resistance: <2mΩ; un-mating force: ≥75g; durability: 1,000 cycles
- Suitable for sensing, instrumentation, medical, avionics, military, automotive, and industrial sectors

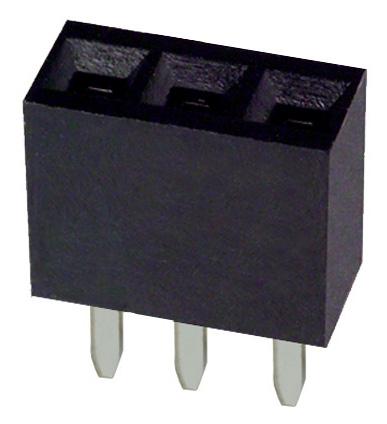

Buy the FCI PV® 67954 U–2013 Reliable Wire-to-Board Connectors for Industrial Applications
Enhance your projects with the reliable FCI PV® 67954 wire-to-board connector system, designed for high durability, secure crimping, and polarization. With flexible configurations in single or double rows, it ensures accurate, gas-tight connections. The system's dual-metal contacts, high mating cycle endurance, and robust housing materials make it ideal for demanding applications like medical devices, industrial equipment, automotive electronics, and aerospace technology. Easily integrate these connectors into your designs and benefit from proven reliability and efficient installation. Purchase online today and secure dependable connections for your next project.
Order your FCI PV® 67954 series crimp-to-wire connector today and ensure high reliability and secure connections in your industrial and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 67954002LF?
You can click on the BUY or RFQ button to purchase 67954002LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 67954002LF?
You can download the 67954002LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 67954002LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
