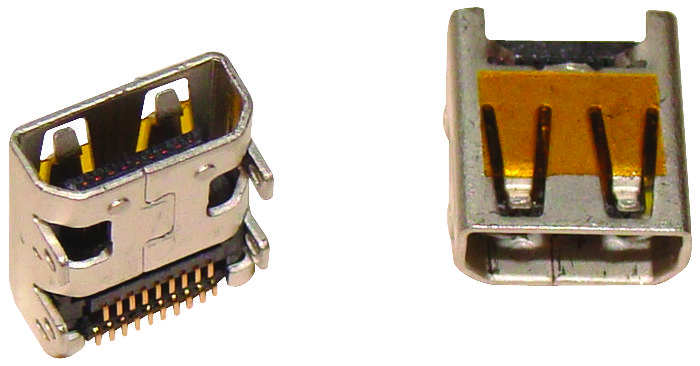

AMPHENOL COMMUNICATIONS SOLUTIONS 10118242001RLF HDMI D-Type Receptacle
The HDMI D Type Receptacle features gold-plated copper alloy contacts and a DIP leg, specifically designed as a micro-type connector that complies with the HDMI standard. Smaller than HDMI A, B, C, and E types, it offers high reliability and is suitable for high-definition display applications. Supports HDMI 1.4 and 3D signal transmission, ideal for compact PCB layouts in multimedia, audio, and computing devices. The connector includes SMT contacts with DIP legs, a black LCP housing UL94V-0 rated, stainless steel shielding with matte tin over nickel, and durability over 5,000 mating cycles with minimal contact resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS 10118242001RLF HDMI D-Type Receptacle Specifications:
- Housing Material: LCP+30% GF, UL94 V-0
- Contact Material: Copper Alloy, gold plated
- Shell: Stainless Steel, matte tin over nickel plating
- Connector Type: HDMI D-type receptacle, micro size
- Number of Mating Cycles: Over 5,000
- Signal Support: HDMI 1.4, 3D transmission
- Temperature Resistance: Withstands exposure to 260°C peak in IR reflow oven for 10 seconds
- FT: DIP legs for SMT mounting, black flammability-rated housing
- Finish: Gold flash plated contact area, tin plated shell
- Applications: Multimedia, high-definition video, audio, imaging, connection with HDMI cables
Buy the Buy AFCI HDMI D Type Receptacle Part Number 10118242001RLF Online
Purchase the AFCI HDMI D Type Receptacle online today for reliable high-speed multimedia connections. This micro HDMI connector features gold-plated contacts, a durable black LCP housing rated UL94V-0, and stainless steel shielding with matte tin over nickel, ensuring long-lasting performance. Supporting HDMI 1.4 and 3D signals, it’s ideal for modern displays, PCBs, and portable devices requiring compact connectivity. Suitable for over 5,000 mating cycles, this connector guarantees dependable performance in high-definition multimedia applications and offers excellent durability and signal integrity.
Get AFCI HDMI D Type Receptacle 10118242001RLF today—designed for high-reliability HDMI connections in compact applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10118242001RLF?
You can click on the BUY or RFQ button to purchase 10118242001RLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10118242001RLF?
You can download the 10118242001RLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10118242001RLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
