AMPHENOL COMMUNICATIONS SOLUTIONS 68001200HLF Interconnection Header
BergStik 2.54mm unshrouded headers are versatile connectors designed for Board-to-Board, Wire-to-Board, and Cable-to-Board applications. Available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions, they support both single and double rows with straight or right-angle configurations from 2 to 72 positions. Made from high temperature thermoplastic with gold or tin plating, these connectors feature a maximum current rating of 3A per contact, excellent mechanical retention, and compatibility with multiple soldering techniques. They meet RoHS standards and support up to 100 mating cycles, offering flexible interconnection solutions for electronic devices.
AMPHENOL COMMUNICATIONS SOLUTIONS 68001200HLF Interconnection Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min.
- Compatible with wave, vapor-phase, and IR reflow soldering
- Package options: Bags, tapes, reels with pick-up caps
- RoHS compliant and supports up to 100 mating cycles

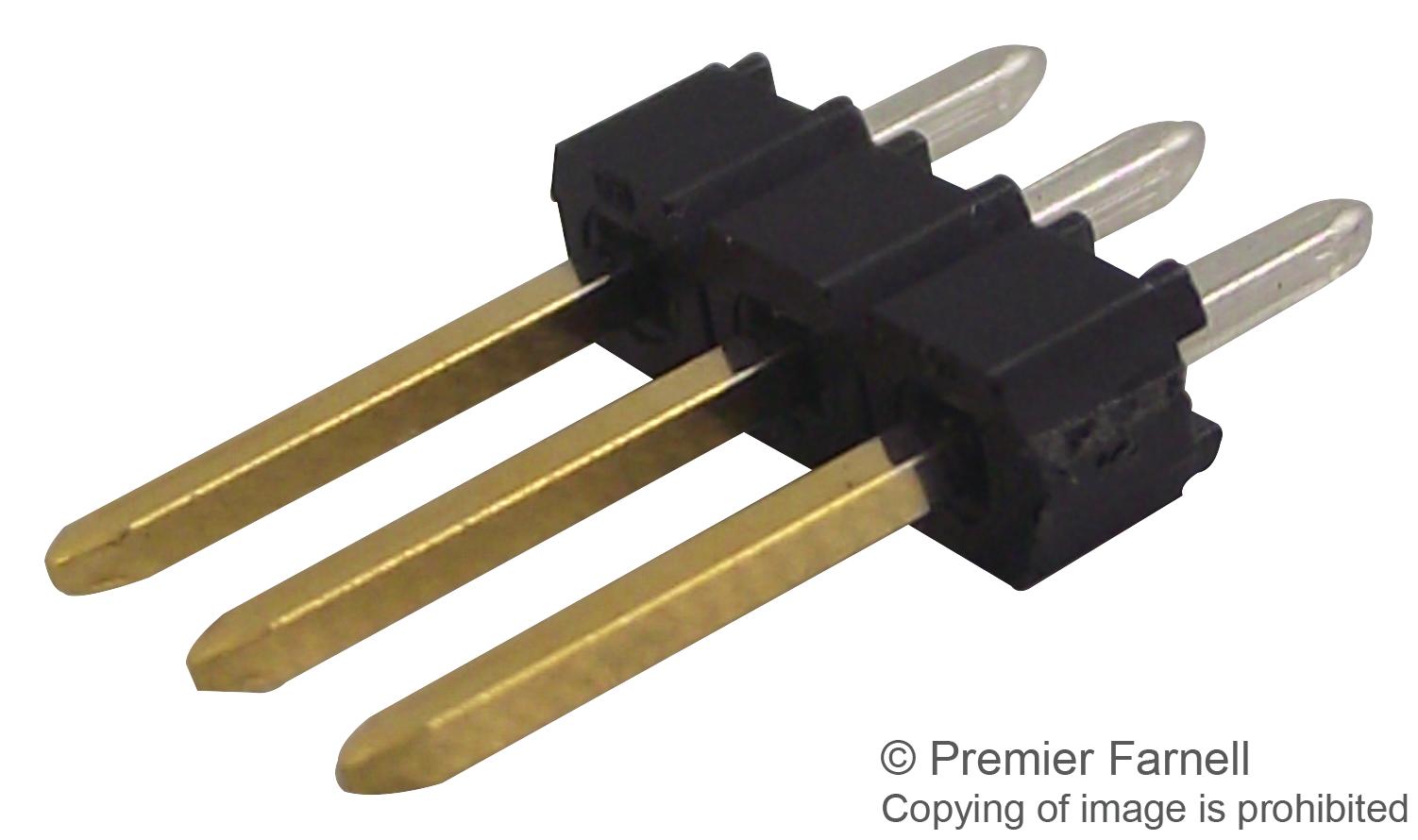

Buy the FCI Series BergStik 2.54MM Unshrouded Headers: 68001200HLF
Enhance your electronic assembly with FCI BergStik 2.54MM unshrouded headers, offering versatile, RoHS-compliant interconnect solutions. Available in various configurations, these headers support surface-mount, through-hole, press-fit, stacking, and pin-in-paste technologies. Made from high temperature thermoplastic with gold or tin plating, they provide excellent mechanical retention and reliable electrical performance. Suitable for board-to-board, wire-to-board, and cable-to-board connections, supporting up to 100 mating cycles. Efficient, flexible, and easy to use, order now for dependable, high-quality interconnect solutions.
Order your FCI Series BergStik 2.54MM Unshrouded Headers today and give your electronic projects the reliable interconnect solutions they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68001200HLF?
You can click on the BUY or RFQ button to purchase 68001200HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68001200HLF?
You can download the 68001200HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68001200HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
