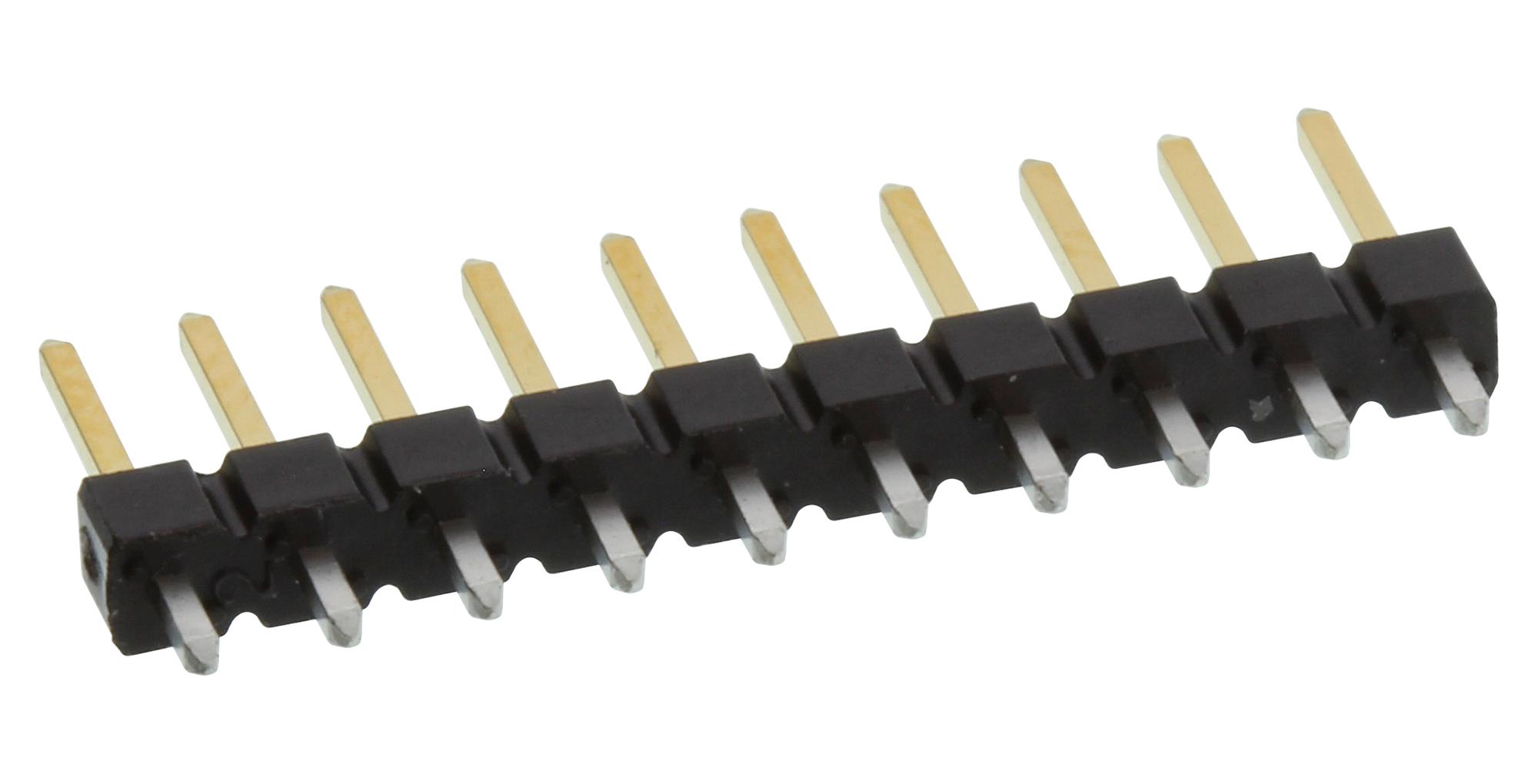

AMPHENOL COMMUNICATIONS SOLUTIONS 68001206HLF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile connectors suitable for board-to-board, wire-to-board, and cable-to-board applications. Available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste configurations, they come in single and double row options with straight or right angle orientations. Constructed from high-temperature thermoplastic and phosphor-bronze pins, they feature gold or tin plating over nickel, supporting up to 3A per contact. These connectors are RoHS compliant, withstand temperatures from -65°C to +125°C, and are designed for reliable, reusable connections up to 100 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 68001206HLF Unshrouded Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min.
- Compatible with wave, vapor-phase, and IR reflow soldering
- RoHS compliant
- Available in multiple sizes, configurations, and packaging options
- Suitable for industrial, automation, and electronic equipment
- Designed for up to 100 mating cycles
Buy the FCI 68001206HLF – Reliable Board-to-Board Connectors for Industrial Applications
Purchase the FCI unshrouded header part 68001206HLF online today to ensure reliable connections for your electronic projects. This high-quality connector supports surface-mount and through-hole processes, offering excellent thermal stability, RoHS compliance, and a current capacity of 3A per contact. With a temperature range from -65°C to +125°C, it is suitable for industrial automation, electronic equipment, and demanding applications. Its robust design allows up to 100 mating cycles, providing excellent reusability and long-term performance for your manufacturing needs.
Get FCI 68001206HLF today—built for precision, durability, and versatile interconnect solutions in industrial and electronic assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68001206HLF?
You can click on the BUY or RFQ button to purchase 68001206HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68001206HLF?
You can download the 68001206HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68001206HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
