Amphenol-Communications-Solutions L17DTZF09LJSRGL77SDE09S D-Sub Connector Kit
The D-Sub Hood and connector kits are made from durable zinc and steel materials with nickel and tin plating for corrosion resistance. The hood features a top entry cable design suitable for various sizes up to 37 pins, operating within -45°C to +105°C temperature range. The solder cup connectors have UL94 V-0 glass-filled insulators, copper alloy contacts with gold flash over nickel plating, and withstand voltages over 1000V RMS. Available in sizes for 9, 15, 25, and 37 pins, these connectors offer excellent EMI shielding and reliable performance in industrial applications.
Amphenol-Communications-Solutions L17DTZF09LJSRGL77SDE09S D-Sub Connector Kit Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry
- Cable O.D - Standard: 9-Way up to 6.5mm with grommet, 15-Way up to 6.5mm, 25-Way up to 8.0mm, 37-Way up to 9.0mm
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact pins: Copper Alloy with Gold flash over Nickel
- Operating Temperature (contacts): -55°C to +85°C
- Withstanding voltage: >1000V RMS to 50 Hz
- Current Rating: BA
- Insulator resistance: >5000MQ min.
- Available in sizes: 9, 15, 25, 37
- Features: Excellent EMI shielding, re-openable size, spring-clip mounted jack screws
- Dimensions (Varies by size): 9-way: 31.6mm x 39.5mm x 15.2mm, 15-way: 40.0mm x 41.0mm x 15.2mm, 25-way: 53.7mm x 47.5mm x 15.2mm, 37-way: 70.2mm x 48.0mm x 15.2mm

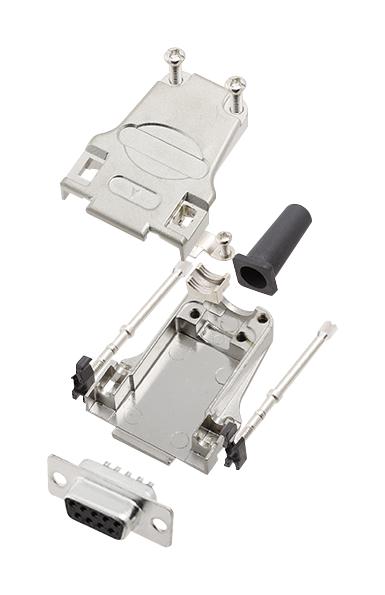

Buy the Buy Amphenol D-Sub Hood Part Number L17DTZF09LJSRGL77SDE09S Online
Purchase the Amphenol D-Sub connector kit online today for dependable performance in industrial wiring projects. These connectors feature excellent EMI shielding, high-temperature tolerance, and corrosion-resistant zinc and steel materials. Suitable for various pin counts up to 37, they incorporate UL94 V-0 insulators, copper alloy contacts with gold flash plating, and withstand voltages over 1000V RMS. Easy to install with top entry cable design and spring-clip mounted jack screws, these kits are ideal for reliable, secure electronic connections in demanding environments.
Buy Amphenol L17DTZF09LJSRGL77SDE09S now and ensure reliable industrial connections with superior EMI shielding and robust construction.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17DTZF09LJSRGL77SDE09S?
You can click on the BUY or RFQ button to purchase L17DTZF09LJSRGL77SDE09S from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF09LJSRGL77SDE09S?
You can download the L17DTZF09LJSRGL77SDE09S datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17DTZF09LJSRGL77SDE09S?
Amphenol-Communications-Solutions
