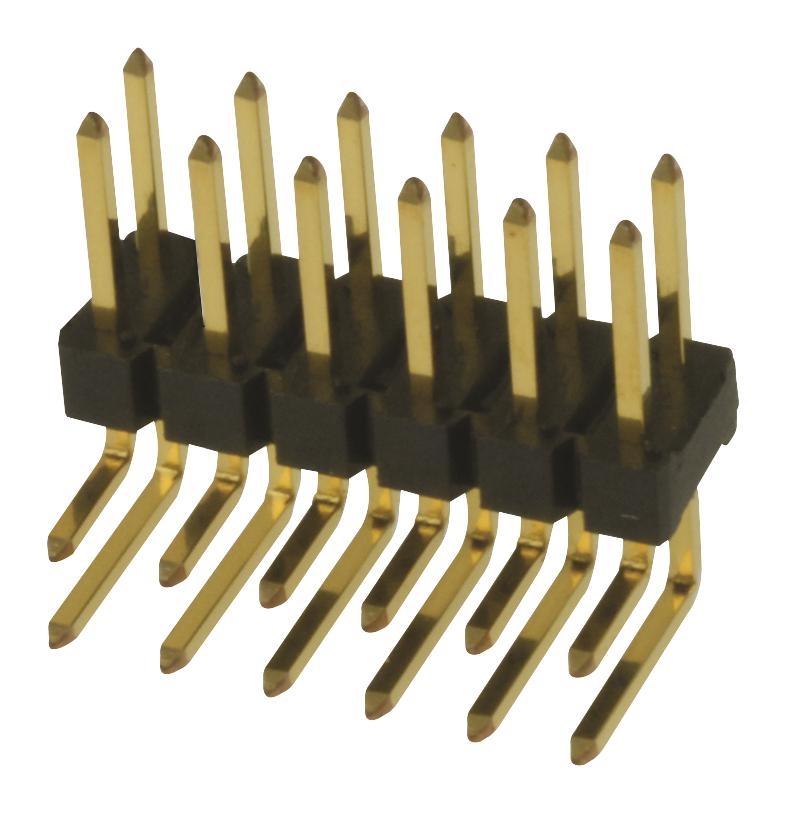

AMPHENOL COMMUNICATIONS SOLUTIONS 68021406HLF Unshrouded Connector
BergStik 2.54mm unshrouded headers are versatile connectors available in surface-mount and through-hole options, with single and double row configurations. Made from high-temperature thermoplastic with UL94V-0 rating, pins are phosphor-bronze plated in gold or tin over nickel, ensuring excellent electrical performance. Rated for 3A per contact, these headers support up to 100 mating cycles and are compatible with wave, vapor-phase, and IR reflow soldering. They cater to board-to-board, wire-to-board, and cable-to-board applications across industrial and automotive markets, offering reliable and customizable interconnections.
AMPHENOL COMMUNICATIONS SOLUTIONS 68021406HLF Unshrouded Connector Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C (for standard headers), -65°C to +130°C (for pin-in-paste headers)
- Retention Force: 9N min.
- Max mating cycles: 100
- Compatible with wave, vapor-phase, IR reflow soldering
- RoHS compliant
- Available in various sizes and configurations including straight and right angle, single and double row
- Physical dimensions vary with pin count and configuration, standardized for PCB mounting
Buy the FCI 68021406HLF – Reliable 2.54mm Unshrouded Connectors for Industrial Applications
Purchase FCI 68021406HLF online—these high-temperature thermoplastic headers with gold or tin plating ensure reliable electrical connections. Designed for board-to-board, wire-to-board, and cable-to-board solutions, they support up to 100 mating cycles, are compatible with various reflow soldering processes, and are RoHS compliant. Ideal for industrial, automotive, and automation applications, this versatile connector offers excellent retention force, customizable sizes, and superior mechanical and electrical performance. Buy now to enhance your electronic assembly with proven quality and durability.
Get FCI 68021406HLF today—built for precision and long-lasting durability in industrial interconnect solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68021406HLF?
You can click on the BUY or RFQ button to purchase 68021406HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68021406HLF?
You can download the 68021406HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68021406HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
