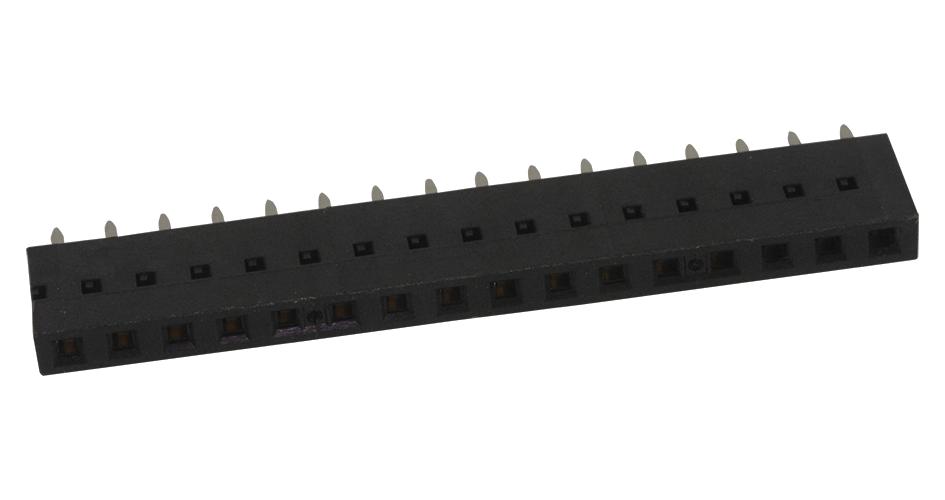

AMPHENOL COMMUNICATIONS SOLUTIONS 68685316LF board connector
The product consists of high-quality, low profile wire-to-board and board-to-wire connectors, such as vertical and horizontal receptacles, shrouded headers, and crimp-to-wire contacts. These connectors feature dual-beam contacts for reliable connections, UL94V-0 rated thermoplastic housings, and gold or tin plating for excellent electrical performance. Designed for easy mating, stackability, and minimal insertion force, they perform reliably across a temperature range of -65°C to +125°C, suitable for various industrial and electronic assembly applications with up to 200 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 68685316LF board connector Specifications:
- Housing Material: Thermoplastic polyester, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27m (50pin.) nickel
- Current Rating: 3A for most connectors, 2A for fully energized contacts
- Insulation Resistance: 1x 10^9Ω, 50,000 MΩ min.
- Contact Resistance: 15 MΩ max. initial, 20 MΩ max. after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: Up to 200 durability cycles
- Insertion Force: Gold contacts max. 1.50 N (150 gf); Tin contacts max. 2.00 N
- Withdrawal Force: Min. 0.30 N (30 gf)
- Insertion Depth: 3.6mm to 7.5mm depending on type
- RoHS compliant according to EU Directive 2002/95/EC
Buy the FCI 68685316LF – Reliable Board-to-Wire Connectors for Industrial Applications
Get your FCI 68685316LF series low profile connectors online today. Designed for reliable electrical connections in industrial, electronic, and automation systems. Featuring dual-beam contacts, UL94V-0 thermoplastic housings, gold or tin plating, and a temperature range of -65°C to +125°C, these connectors offer ease of mating, stackability, and up to 200 mating cycles. Perfect for PCB assembly, wire-to-board configurations, and space-constrained applications, ensuring durability and high performance in demanding industrial environments.
Order your FCI 68685316LF series connectors today and ensure durable, high-performance connections for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68685316LF?
You can click on the BUY or RFQ button to purchase 68685316LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68685316LF?
You can download the 68685316LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68685316LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
