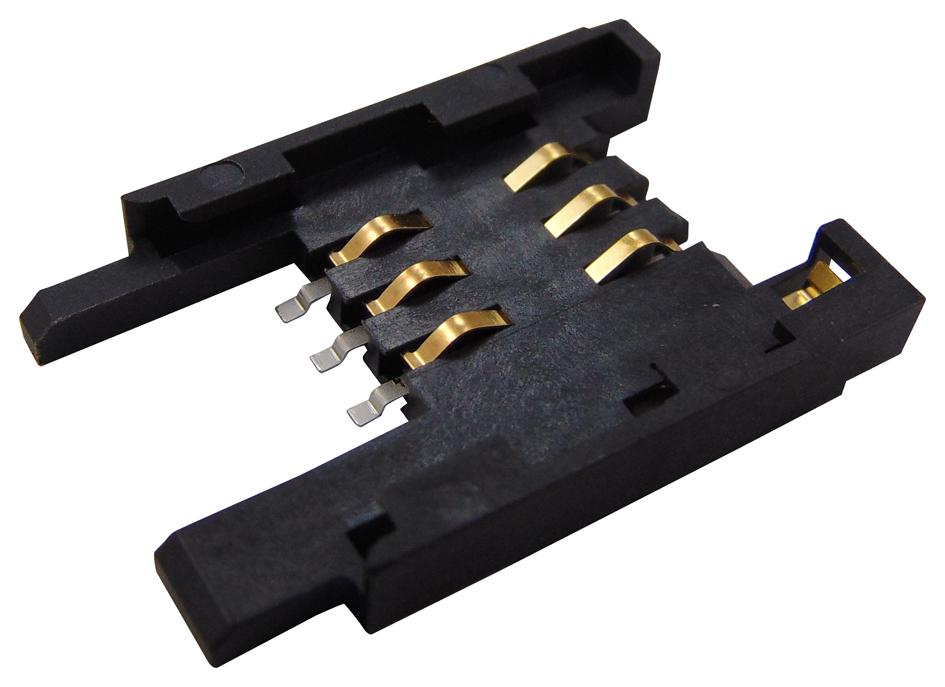

AMPHENOL COMMUNICATIONS SOLUTIONS 7111S1615A01LF SIM Card Connector
The SIM / SAM connector series S06 / S10 is designed for reliable interconnection of full-size and micro SIM cards in GSM terminals. Made with gold-over-nickel contacts and high-temperature thermoplastic housing, these low-profile connectors support SMT assembly with tape and reel packaging. They feature high insulation resistance, withstanding voltage over 1000V RMS, and are tested for vibration, shock, and thermal shock. With a durable cycle life of 10,000 and compatibility with ISO 7816-2, these connectors ensure strong, lasting connections in communication devices.
AMPHENOL COMMUNICATIONS SOLUTIONS 7111S1615A01LF SIM Card Connector Specifications:
- Contact Material: Gold over nickel or equivalent
- Housing: High temperature thermoplastic UL94V-0
- Insulation Resistance: > 1000MQ
- Withstanding voltage: > 1000V RMS
- Contact Resistance: < 100mQ
- Current Carrying Capacity: Min. 10HA, Max. 1A
- Functional Temperature Range: -40°C to +85°C
- Vibration and Shock Resistance: CEI 68-2-36 & 68-2-27 compliant
- Drop & Thermal Shock Resistance: CEI 68-2-14 & EIA 481-3 compliant
- Soldering Peak Temperature: 260°C for 10 seconds
- Mating Interface: ISO 7816-2
- Contact Force: 0.25 N to 0.5 N
- Contact Travel: 0.61 mm ± 0.1 mm
- Durability: 10,000 mating cycles
- Co-planarity: Max 0.15 mm
Buy the FCI Series S06 SIM Card Connector: 7111S1615A01LF
Enhance your communication devices with this reliable SIM card connector made for GSM terminals. Featuring gold-over-nickel contacts, high-temperature thermoplastic housing, and support for SMT assembly, it offers durability, efficient electrical performance, and environmental resilience. Ensuring a minimum of 10,000 mating cycles, it withstands vibration, shock, and thermal stress, making it ideal for mobile phones, tablets, and embedded systems. Easily integrated, its compact profile fits into small spaces while providing secure contact for your SIM cards and secure data transfer.
Order your FCI Series S06 SIM Card Connector today and ensure reliable, high-performance connectivity for your GSM and communication devices.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 7111S1615A01LF?
You can click on the BUY or RFQ button to purchase 7111S1615A01LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 7111S1615A01LF?
You can download the 7111S1615A01LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 7111S1615A01LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
