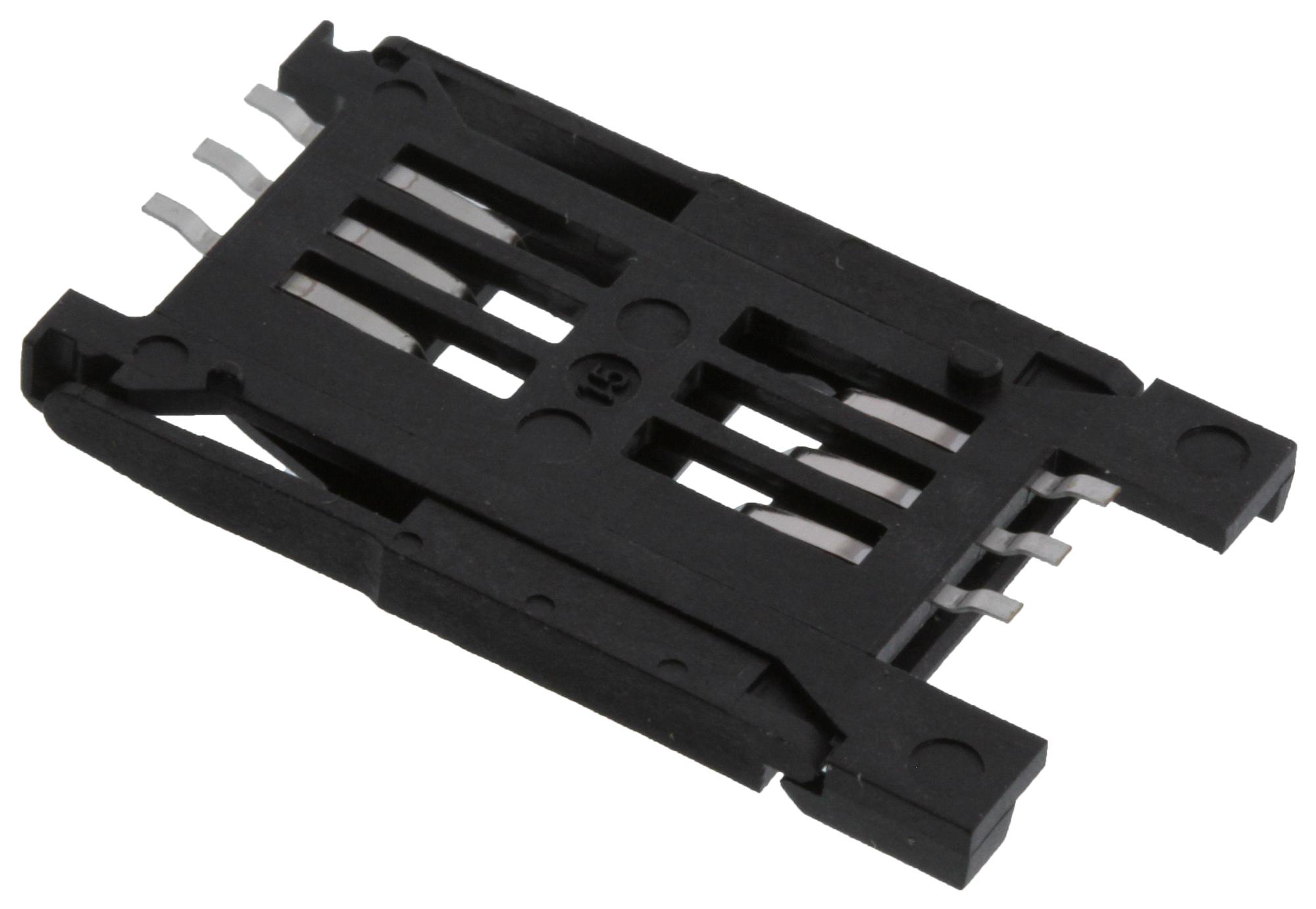

AMPHENOL COMMUNICATIONS SOLUTIONS 7112S2015X02LF SIM Card Reader
The SIM card reader with cover is a high-quality electronic connector designed for mobile device applications. Crafted from high-temp thermoplastic rated UL94V0, it features copper alloy contacts with Au over Ni plating for reliable connections. The reader supports 10,000 mating cycles with a contact resistance below 100mΩ and insulation resistance exceeding 1000MQΩ. It withstands temperatures from -40°C to +85°C and complies with European Union directives, ensuring durability and safety in demanding operating environments. Ideal for secure SIM data management in compact electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 7112S2015X02LF SIM Card Reader Specifications:
- Housing Material: High Temp Thermoplastic, UL94V0 rated
- Contacts Material: Copper Alloy
- Contacts Plating: Au over Ni (contact area), Matte Tin over Ni (solder area)
- Durability: 10,000 mating cycles
- Contact Resistance: <100mΩ
- Insulation Resistance: >1000MQΩ
- Withstanding Voltage: >=1000Vrms
- Current Capacity: min 0uA, max 1A
- Voltage US: 5V ±0.1V at R=560Ω
- Operating Temperature Range: -40°C to +85°C
- Housing Dimensions: Compact design suited for PCB mounting
- Packaging: Tape and Reel
- Compliance: Meets GS-47-0004 EU directives
- Applicable Standards: ISO 7810, ISO 7816, GSM I1.11
Buy the Buy FCI SIM Card Reader With Cover Part Number 7112S2015X02LF Online
Purchase the FCI SIM Card Reader with Cover online today to ensure reliable and secure connection solutions for your mobile and electronic projects. Designed with high-temp thermoplastic housing rated UL94V0, durable copper alloy contacts with gold over nickel plating, and supporting 10,000 mating cycles, this component offers exceptional longevity and performance. It withstands extreme temperatures from -40°C to +85°C, making it suitable for demanding environments. Ideal for integration into PCB systems, this SIM card reader complies with European standards and features tape and reel packaging for easy handling and installation.
Get FCI 7112S2015X02LF today—built for secure connections and long-lasting durability in mobile and electronic devices.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 7112S2015X02LF?
You can click on the BUY or RFQ button to purchase 7112S2015X02LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 7112S2015X02LF?
You can download the 7112S2015X02LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 7112S2015X02LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
