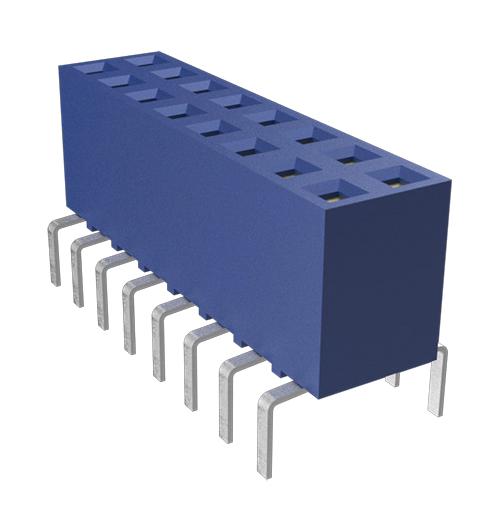

AMPHENOL COMMUNICATIONS SOLUTIONS 71991309LF Vertical Receptacle
The DUBOX™ vertical receptacles are low profile, stackable connectors designed for reliable electrical connections. Made from high-temperature thermoplastic with UL94V-0 rating, they feature dual-beam contacts for low insertion force and signal protection with a 4-wall contact design. They support current ratings up to 3A per contact, with insulation resistance of 1x10^9MQ min. Operating within -65°C to +125°C, these connectors provide durability for applications demanding high performance, with a mating cycle durability of 200. Suitable for PCB mounting, they are RoHS compliant and come in various configurations including top and dual entry options.
AMPHENOL COMMUNICATIONS SOLUTIONS 71991309LF Vertical Receptacle Specifications:
- Housing: Glass-filled thermoplastic polyester, UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or tin over 1.27μm nickel
- Current rating: 3A DC max. per contact
- Insulation resistance: 1x 10^9MQ min.
- Contact resistance: 15MQ max. initial, 20MQ max. after environmental tests
- Dielectric withstand voltage: 1000V RMS
- Operating temperature range: -65°C to +125°C
- Mating cycles: 200
- Insertion force: 1.50 N (150gf) max for gold contacts
- Withdrawal force: 0.30 N (30gf) min for gold contacts
- Insertion depth: 3.6mm min. to 6.81mm max.
- Threaded, RoHS compliant, suitable for wave soldering
- Packaging: Plastic boxes, tubes, or tape-and-reel
- RoHS compliant according to EU Directive 2002/95/IEC
Buy the FCI 71991309LF – Reliable Vertical Receptacles for Industrial Applications
Purchase the FCI vertical receptacle today for dependable signal integrity and robust performance in industrial, PCB, and electronic applications. Featuring low insertion force dual-beam contacts, high-temperature thermoplastic housing, and RoHS compliance, this connector ensures long-lasting durability and reliable electrical connections. Ideal for high-performance systems, it supports up to 3A current per contact, with a comprehensive operating temperature range of -65°C to +125°C. Easy to install, stackable, and available in multiple configurations, it is your perfect solution for secure, high-quality connections that meet strict industry standards.
Get FCI 71991309LF today—designed for high durability and low insertion force in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 71991309LF?
You can click on the BUY or RFQ button to purchase 71991309LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 71991309LF?
You can download the 71991309LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 71991309LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
