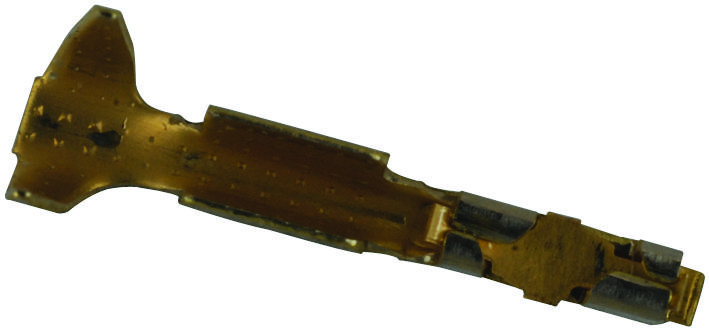

AMPHENOL COMMUNICATIONS SOLUTIONS 48254000LF wire-to-board connector system
The Mini PV series high-durability and high-retention wire-to-board connector system is designed to connect discrete wires to printed circuit boards with reliable performance. It features high-reliability dual-metal receptacle terminals that plug into industry-standard 0.025-inch square posts. The system offers various containment, protection, and guidance options for both sides of the connector interface. The wire side PV® receptacle terminals can be terminated to wires for discrete use or inserted into multiple-circuit MINI-LATCH connector housings that include optional polarizing keys, ensuring correct mating orientation. Printed circuit side headers are shrouded with integral friction features that grip the sides of the MINI-LATCH housings, reducing the risk of disengagement. The connector supports three different spring pressures, allowing users to customize insertion and withdrawal forces for specific applications. Key features include dual-metal PV® contacts maintaining contact pressure through 1,000 mating cycles, beryllium copper springs providing high normal force, and brass contact bodies ensuring reliable, gas-tight crimp terminations. The MINI-LATCH housing securely retains the wire contacts and is available in single or double row configurations. Polarization is achieved through keyed housings and header keyways to prevent mis-mating. The two-wall header design offers mechanical benefits and cost efficiency. The system operates within a temperature range of -40°C to +105°C and is suitable for applications such as consumer electronics, sensing and instrumentation, medical devices, defense, military and aerospace, communications and networking, and industrial equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 48254000LF wire-to-board connector system Specifications:
- Contact Material: Brass with beryllium copper springs
- Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide and glass-filled nylon (UL94V-0)
- Temperature Range: -40°C to +105°C
- Current Rating: 3.0A per circuit with 32 AWG wire
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Withstanding Voltage: 1000V RMS
- Contact Resistance: <2mQ
- Durability: 1000 mating cycles
- Operating Voltage: Up to 1000V RMS
- Wire Range: Up to 1.52mm diameter wires
- Configuration: Single or double row, polarized, various series for different pin counts
Buy the Innovative Connectors Reliable for Industrial Applications
Purchase the FCI PV wire-to-board connector system online today to ensure your industrial, medical, or communication project benefits from high reliability and long-lasting performance. This system offers versatile configurations, including single and double row options, polarization to prevent mis-mating, and robust dual-metal PV® contacts capable of withstanding 1000 cycles. With a temperature range from -40°C to +105°C and easy-to-use crimping tooling, you can streamline assembly, reduce downtime, and enhance connection security—perfect for automation, instrumentation, and critical applications.
Order your FCI PV wire-to-board connector system today and enhance your projects with high reliability, durability, and flexible configurations.
