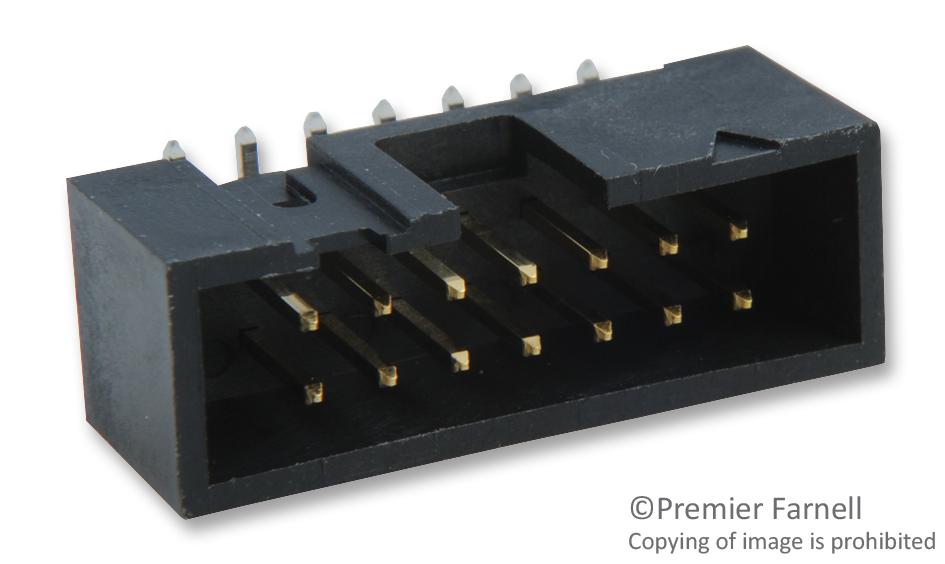

AMPHENOL COMMUNICATIONS SOLUTIONS 72454014LF Connector System
The Quickie™ Connector System is a low-power, insulated piercing connector designed for printed wiring board-to-flat cable interconnections. Made with full-hard phosphor bronze contacts and optional plastic latches, it features gold or tin plating for reliable electrical contact. Suitable for high humidity, vibration, thermal shock, and other environmental conditions, it ensures durable, all-metal contact resistance below 15 milliohms. Ideal for printed wiring boards, flexible, and round conductors, it incorporates optional strain relief, latching, polarizing features, and is compliant with military and industry standards for quality and performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 72454014LF Connector System Specifications:
- Material: Full-hard phosphor bronze contacts
- Plating: Gold per MIL-45204B or tin-lead over nickel per QQ-N-290
- Current Rating: 1.0 ampere DC
- Contact Resistance: ≤10 milliohms, ≤15 milliohms after environmental tests
- Insulation Resistance: ≥50,000 megohms, ≥20,000 megohms after humidity exposure
- Dielectric Voltage: ≥1,000 volts RMS, 60 Hz, 60 seconds
- Temperature Range: -65°C to +105°C, high temp life at 85°C for 250 hours
- Mechanical: Contact separation force ≥25 grams, total mating force varies per population
- Environmental: Humidity, thermal shock, vibration, hydrogen sulfide, salt spray testing
- Dimensions & Construction: Molded plastic latch, optional strain relief, header and receptacle with self-stripping contacts
Buy the Quickie Connector System Low-Power Interconnection: BUS-12-082
Order the Quickie Connector System BUS-12-082 online today to ensure reliable, high-quality printed wiring and cable interconnections. Designed for low power applications, it features full-hard phosphor bronze contacts with optional gold or tin plating for excellent electrical performance. The system includes molded plastic latches, optional strain relief, and polarized features for easy, accurate assembly. It withstands extreme environmental conditions like humidity, vibration, and thermal stress, making it ideal for demanding electronic and industrial applications. Purchase now for durable, high-performance connectivity solutions.
Get Quickie Connector System BUS-12-082 today—built for precision, durability, and reliable printed wiring and cable connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 72454014LF?
You can click on the BUY or RFQ button to purchase 72454014LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 72454014LF?
You can download the 72454014LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 72454014LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
