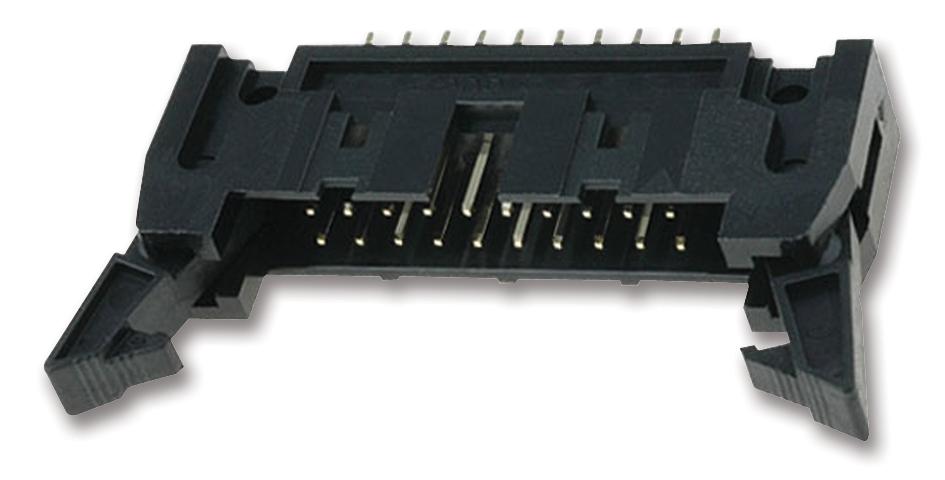

AMPHENOL COMMUNICATIONS SOLUTIONS T816134A1S102CEU Latch Header
The T816 phenol latch header is a 2.54mm pitch, high-quality electrical connector designed for industrial and electronics applications. It features brass contacts with gold or tin plating options, including over 50u" nickel, and is housed in PBT+25% G.F insulators with UL 94V-0 rating for flame resistance. Suitable for PCB assembly, it offers options with straight, right-angled, or long latches, and is ROHS compliant. This connector can handle up to 3.0A current, with voltage ratings of 250V AC/DC, operating within -40°C to +105°C, ensuring reliable electronic connections in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS T816134A1S102CEU Latch Header Specifications:
- Pitch: 2.54mm
- Housing Material: PBT+25% G.F, UL 94V-0
- Contact Material: Brass, Gold or Tin Plated over 50u" Ni
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 VAC RMS 60Hz for one minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- No. of Positions: 6, 8, 10, 14, 16, 18, 20, 24, 26, 35, 40, 48, 60, 64
- Pin Spacing: 2.54mm
- Plating Options: Gold flash over 50u" Ni, Full Tin over 50u" Ni
- Termination Options: Straight THT, Right Angled THT, Long or Short Latch
- RoHS Compliant: Yes
Buy the Berg T816 – Reliable Latch Header for Industrial Applications
Purchase the Berg T816 latch header online now—engineered for dependable PCB connections with high-quality brass contacts, gold/tin plating, and versatile latch options. This connector is ideal for industrial electronics, featuring high temperature resistance, RoHS compliance, and a current capacity of up to 3.0A. Its robust insulation and dielectric properties ensure reliable operation in demanding environments while its easy-to-assemble design simplifies manufacturing. Ensure your electronic projects are secure and compliant by ordering the Berg T816 latch header from our online store today.
Get Berg T816 latch header today—built for precision and long-lasting durability in electronic and industrial assemblies.
