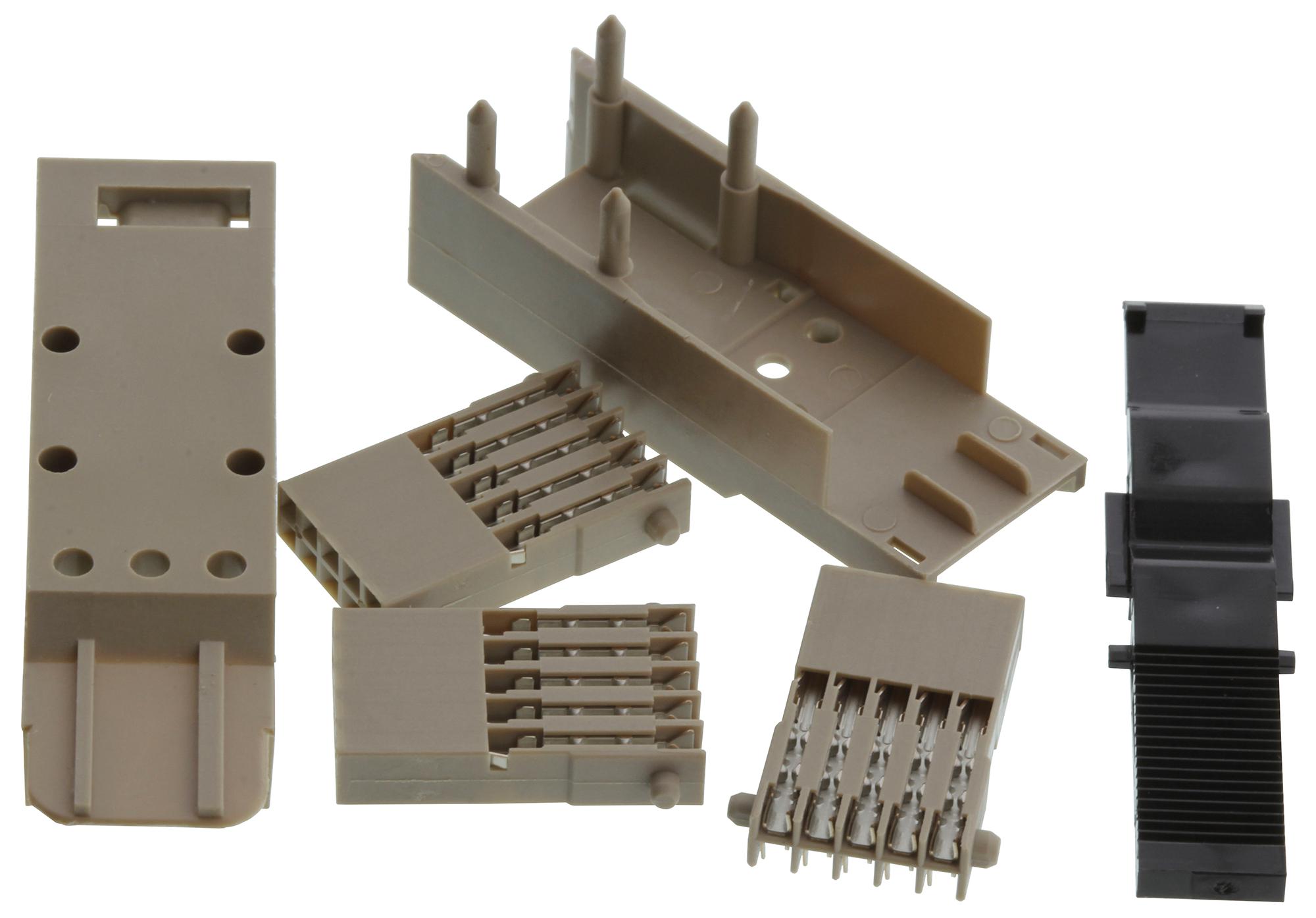

AMPHENOL COMMUNICATIONS SOLUTIONS 724781111LF Backplane Connector
Metral cable connectors are designed with a 2mm pitch to provide reliable board-to-cable connections for data, industrial, medical, and telecom applications. Crafted from glass-filled polyamide with copper alloy contacts, these connectors feature insulation-displacement contacts, dual-beam contact design for vibration resistance, and an active backshell latch for secure attachment. Suitable for 30AWG to 24AWG wires, they support environments from -55°C to +105°C. Compliant with IEC 61076-4-104 and Telcordia GR-1217-CORE standards, these stackable connectors cater to multi-row configurations with high electrical and environmental performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 724781111LF Backplane Connector Specifications:
- Housing: Glass-filled Polyamide, UL 94V-0
- Contact Material: Copper Alloy
- Plating: Performance-based plating
- Dielectric Withstanding Voltage: 100 VDC
- Insulation Resistance: ≥ 1000 MΩ
- Current Rating: 1A per contact
- Operating Temperature: -55°C to +105°C
- Mating Force: 1N max. per pin
- Unmating Force: ≥ 0.2N per pin
- Wire Range: 30AWG to 24AWG
- Standards: IEC 61076-4-104, Telcordia GR-1217-CORE
- Packaging: Trays
- Application: Data, industrial, instrumentation, medical, telecom
Buy the Metral 724781111LF – Reliable Backplane Cable Connector for Industrial Applications
Enhance your connection reliability with the Metral backplane connector, designed for industrial, data, and medical applications. Featuring a 2mm pitch, insulation-displacement contact, and a durable glass-filled polyamide housing, it offers high electrical performance and environmental resistance from -55°C to +105°C. Its stackable design and secure active backshell latch ensure easy installation and a reliable connection with wire ranges from 30AWG to 24AWG. Certified according to IEC and Telcordia standards, this connector is ideal for mission-critical systems requiring durability and high performance.
Order your Metral Series724781111LF backplane cable connector today and ensure secure, reliable connections for your industrial, data, or medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 724781111LF?
You can click on the BUY or RFQ button to purchase 724781111LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 724781111LF?
You can download the 724781111LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 724781111LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
