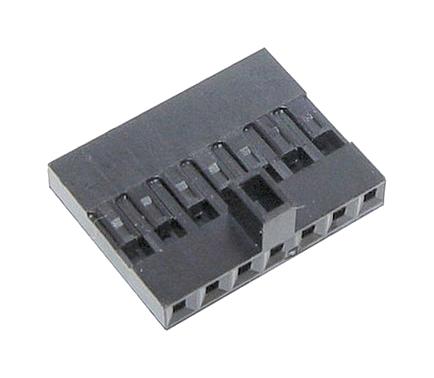

AMPHENOL COMMUNICATIONS SOLUTIONS 78211007LF Wire-to-Board Connector
The PV wire-to-board connector system offers high-reliability connections with dual-metal receptacle contacts that maintain contact pressure for up to 1000 mating cycles. It features a compact design with shrouded headers, polarized MINI-LATCH housings, and options for single or double rows. Suitable for industrial, medical, automotive, and communication applications, these connectors support wire sizes up to 1.52mm, with gold or tin plating for corrosion resistance, and operate within -40°C to +105°C. They include various tooling and certification standards, ensuring durability and ease of use in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 78211007LF Wire-to-Board Connector Specifications:
- Contact material: Brass body with beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0 and glass-filled nylon UL94V-0
- Current rating: 3.0A with 32 AWG wire, de-rating applies for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ for wire connectors, >5000MQ for headers
- Contact resistance: <2mQ
- Mating force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating force: 75g (high force spring), 175g (ultra-high force spring)
- Durability: 1000 cycles
- Operating temperature: -40°C to +105°C
- Maximum wire diameter: 1.52mm
- Approvals: URE66906, CSALR46923
Buy the Daikoku Series PV Wire-to-Board: 78211007LF
Enhance your electronic projects with the high-reliability PV wire-to-board connector system featuring dual-metal contacts, polarization options, and robust construction. Easy to assemble with provided tooling, supports wire sizes up to 1.52mm, and withstands temperatures from -40°C to +105°C. Ideal for industrial, automotive, medical, and communication applications. Ensure long-lasting performance with gold or tin plating and meet safety certifications for demanding environments. Order online today for quality, flexibility, and dependable connections in your manufacturing or repair needs.
Get Daikoku PV wire-to-board connector today—built for high reliability, durability, and flexible configurations for demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 78211007LF?
You can click on the BUY or RFQ button to purchase 78211007LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78211007LF?
You can download the 78211007LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 78211007LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
