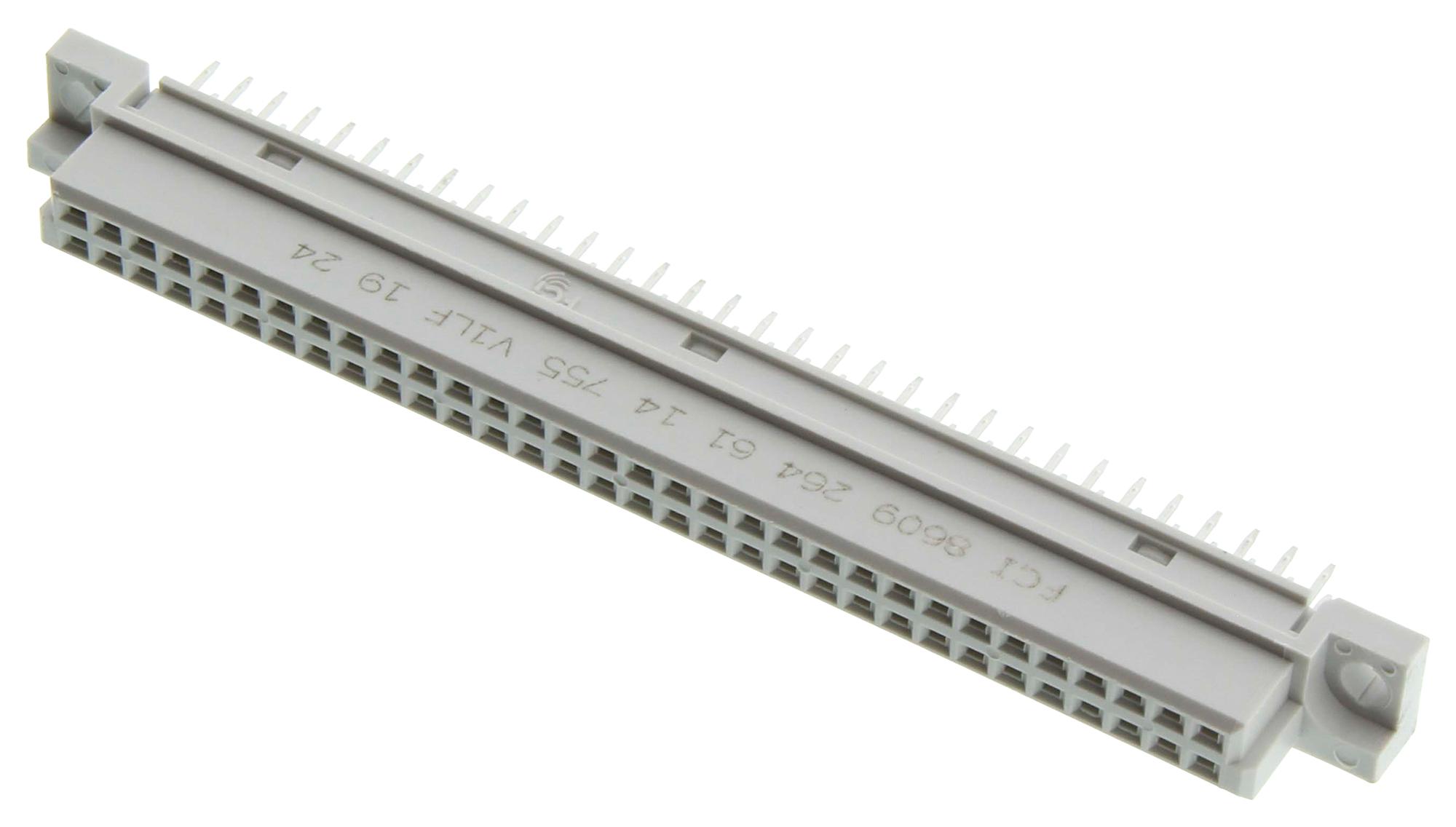

AMPHENOL COMMUNICATIONS SOLUTIONS 86092646114755V1LF DIN 41612 Connectors
The DIN 41612 Signal Headers and Receptacles offer a reliable, cost-effective connection solution for industrial, telecom, and data applications, conforming to DIN 41612 and IEC 603-2 standards. These modular connectors feature a 2.54mm pitch, with options up to 3 rows and 96 positions, supporting solder, press-fit, and pin-in paste terminations. Made from durable polyester thermoplastic and copper alloy contacts, they provide excellent electrical performance, with high vibration and shock resistance, UL and CSA approvals, and wide temperature tolerance. Suitable for routing PCB traces with extended mating applications using shrouds and accessories.
AMPHENOL COMMUNICATIONS SOLUTIONS 86092646114755V1LF DIN 41612 Connectors Specifications:
- Pitch: 2.54mm
- Number of Rows: Up to 3
- Positions: Up to 96
- Materials: Polyester thermoplastic insulator, Copper alloy contacts
- Contact Plating: Gold over Nickel or GXT® over Nickel
- Termination Options: Solder, press-fit, pin-in paste
- Temperature Range: -55°C to +125°C
- Current Rating: 1.5A at 20°C, Max 2A
- Voltage Rating: 1000V
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 10 MΩ
- Vibration & Shock Resistance: < Ips, < 40mΩ
- Certifications: UL Listed, CSA Certified
- Environmental Resistance: Damp heat, lead-free, wave solder capable
Buy the Amphenol Series DIN 41612 Signal Headers & Receptacles: 86092646114755V1LF
Order the DIN 41612 Signal Headers and Receptacles online today to ensure high-performance, durable, and cost-effective PCB interconnections. With versatile mounting options, excellent electrical characteristics, and UL/CSA approval, these connectors are ideal for industrial, telecom, and data markets. Designed with a 2.54mm pitch, support for up to 3 rows and 96 positions, and various termination types, they provide flexibility for complex PCB routing and extended mating applications. Enhance your PCB assemblies with these trusted, reliable connectors from Amphenol, available for quick online purchase.
Buy Amphenol DIN 41612 Signal Headers and Receptacles now and experience reliable, modular PCB connections with extensive accessories and high durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 86092646114755V1LF?
You can click on the BUY or RFQ button to purchase 86092646114755V1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 86092646114755V1LF?
You can download the 86092646114755V1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 86092646114755V1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
