AMPHENOL COMMUNICATIONS SOLUTIONS 86094647113755E1LF DIN Signal Connector
DIN 41612 signal headers and receptacles offer a reliable and cost-effective connection solution for industrial, telecom, and data applications. Designed with a 2.54mm pitch, these modular connectors feature high-temperature insulators, copper alloy contacts with gold or nickel plating, and can withstand exposure to lead-free soldering temperatures of 260°C to 265°C. They provide low insertion and extraction forces, high contact retention, and electrical ratings up to 2A at 20°C. Suitable for switching, routing, enterprise, and energy transmission, these connectors ensure durability and flexible installation options.
AMPHENOL COMMUNICATIONS SOLUTIONS 86094647113755E1LF DIN Signal Connector Specifications:
- Pitch: 2.54mm
- Material: Polyester thermoplastic insulator
- Contact Material: Copper alloy
- Plating: Gold over Nickel or GXT over Nickel on mating surface; Tin over Nickel on solder terminations
- Temperature Range: -55°C to +125°C
- Dielectric Withstanding Voltage: 1000V RMS
- Current Rating: 1.5A (max 2A)
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 10^9Ω
- Mating Insertion Force: < 0.94N per contact
- Mating Extraction Force: > 0.15N per contact
- Shock & Vibration Resistance: < 40mΩ
- Creepage & Clearance: > 1.2mm
- Environmental: Damp heat steady state 56 days, temperature -55°C to +125°C
- Certifications: UL, CSA approved

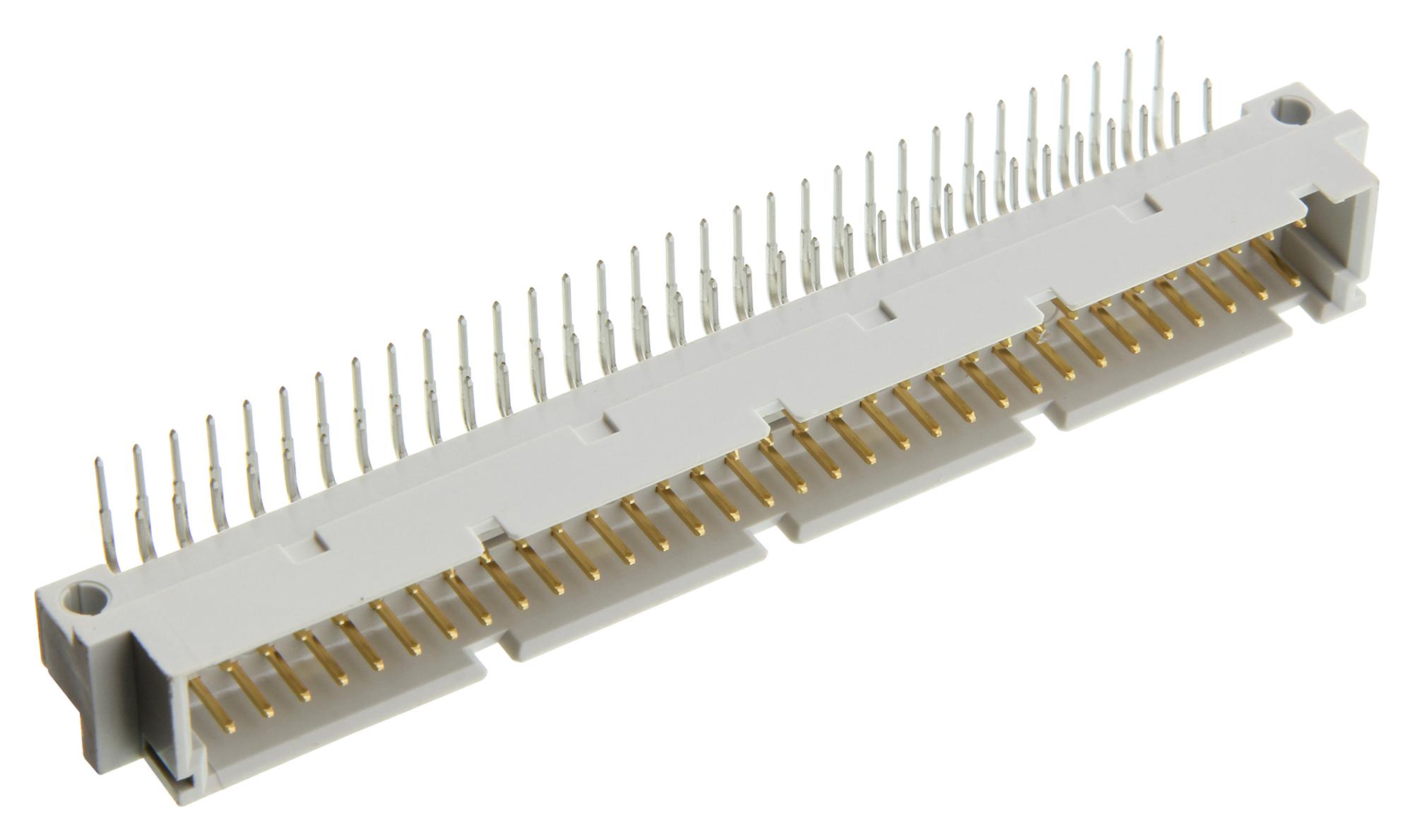

Buy the Buy FCI DIN 41612 Signal Headers Part Number 860946471137 Online
Purchase the DIN 41612 signal headers and receptacles online for your industrial, telecom, or data projects. These connectors feature a 2.54mm pitch, high-temperature thermoplastic insulators, and copper alloy contacts with gold or nickel plating. Designed to withstand up to 2A current at 20°C, they offer low insertion/extraction forces, high contact retention, and robust environmental resilience. Easy to install with options for solder or press-fit terminations, ensuring reliable performance across switching, routing, and energy transmission applications—order now for fast delivery and quality assurance.
Get FCI 860946471137 today—built for reliable switching and high-density PCB routing in industrial and telecom markets.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 86094647113755E1LF?
You can click on the BUY or RFQ button to purchase 86094647113755E1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 86094647113755E1LF?
You can download the 86094647113755E1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 86094647113755E1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
