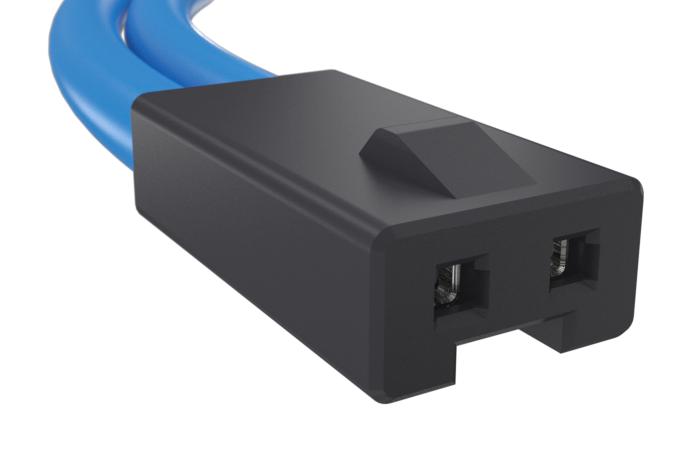

AMPHENOL COMMUNICATIONS SOLUTIONS FLMS2300 DALI Connector
The FLM Series DALI interface connectors are Zhaga Book 20 compliant, designed for indoor luminaires, and support DALI-2 protocol. Made from high-temperature resistant thermoplastic with copper alloy contacts, these connectors feature secure, easy mating and unmating with Poka Yoke and dimple latch features. They come in wire-to-wire and wire-to-board configurations, including right-angle and vertical SMT receptacles, as well as wire termination housings. Suitable for applications like lighting control, sensing, and monitoring, they assure reliable electrical and mechanical performance, rated up to 7A and 250VAC, with durability for 25 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS FLMS2300 DALI Connector Specifications:
- Material: High temperature resistant thermoplastic, UL94V-0
- Contacts: Copper alloy, plated with matte tin over nickel
- Current Rating: 7A max. per circuit with 18AWG wire, 5A with 20AWG, 3A with 22AWG
- Voltage Rating: 250VAC / VDC
- Contact Resistance: 20mΩ max. after environmental exposure
- Insulation Resistance: 50MΩ min. at 500VDC
- Dielectric Withstanding Voltage: 1500VAC
- Operating Temperature Range: -40°C to +105°C
- Durability: 25 mating cycles
- Mechanical Shock: 50G’s, 2 sine, per IEC standards
- Vibration: IEC branch VII, Letter D
Buy the Amphenol Series FLM DALI Connectors: FLMS2300
Discover the reliable Amphenol Series FLM DALI connectors, compliant with Zhaga Book 20 for indoor luminaires. Designed for flexible wiring options, these connectors feature secure latch mechanisms, Poka Yoke alignment, and robust thermoplastic housings to withstand harsh environments. With a current rating up to 7A and voltage of 250VAC, they are ideal for lighting, sensing, and control applications. Easy to install and maintain, these connectors enhance system reliability, ensuring seamless communication and operational efficiency in professional lighting and sensor networks.
Order your Amphenol Series FLM FLMS2300 DALI connectors today and ensure reliable, compliant lighting control connections for indoor luminaires with versatile mounting options.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS FLMS2300?
You can click on the BUY or RFQ button to purchase FLMS2300 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part FLMS2300?
You can download the FLMS2300 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of FLMS2300?
AMPHENOL COMMUNICATIONS SOLUTIONS
