AMPHENOL COMMUNICATIONS SOLUTIONS 87606304LF Vertical Receptacle
The 87606304LF is a vertical receptacle designed with a low profile, featuring a dual-beam contact for low insertion force and signal protection. Made from high-temperature, glass-filled thermoplastic polyester, it offers a flammability rating of UL94V-0 and a robust construction suitable for demanding environments. It supports current ratings up to 3A DC per contact, with an insulation resistance of at least 10^9 ohms, and can withstand dielectric voltages of 1000V RMS. The connector operates in temperatures ranging from -65°C to +125°C and is compatible with wave soldering processes, making it ideal for surface-mount applications in modern electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606304LF Vertical Receptacle Specifications:
- Housing Material: Glass filled thermoplastic polyester
- Housing Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27mm nickel
- Current Rating: 3A DC per contact
- Insulation Resistance: 1x 10^9Ω min.
- Contact Resistance: 15MQ max. initial, 20MQ max. after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N (150gf) max. per gold contact
- Withdrawal Force: 0.30 N (30gf) min. per gold contact
- Insertion Depth: Top entry 3.6mm min. to 6.7mm max., bottom entry 6mm min.
- Environmental Certifications: ROHS compliant
- Packaging: Plastic boxes or tubes, wave-solder compatible

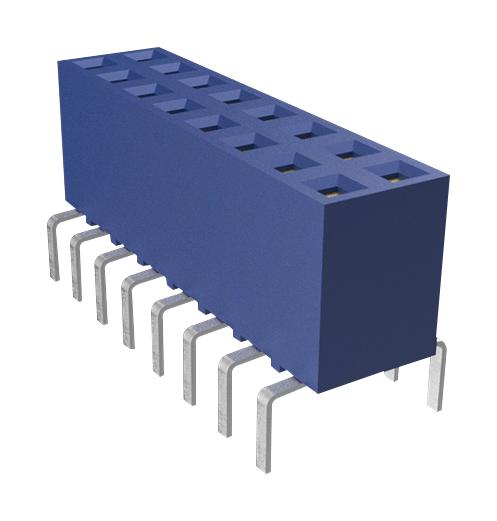

Buy the Buy FCI DUBOX™ Vertical Receptacle Part Number 87606304LF Online
Order the FCI DUBOX™ vertical receptacle part number 87606304LF online today for a reliable, high-temperature, low profile connector solution. Designed with a dual-beam contact system, it ensures low insertion force and signal integrity. Made from UL94V-0 rated thermoplastic, it withstands temperatures from -65°C to +125°C, offering a dielectric voltage of 1000V RMS and current ratings up to 3A. Compatible with wave soldering, this connector is perfect for surface-mount applications in demanding electronic environments—order now for rapid delivery and excellent performance.
Get FCI DUBOX™ 87606304LF today—built for high-temperature durability and reliable signal protection in compact electronic assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606304LF?
You can click on the BUY or RFQ button to purchase 87606304LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606304LF?
You can download the 87606304LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606304LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
