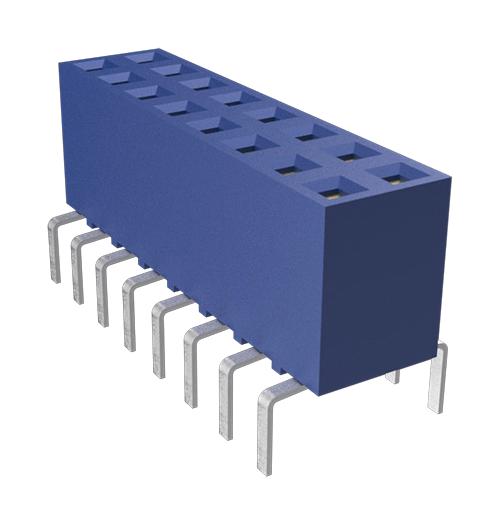

AMPHENOL COMMUNICATIONS SOLUTIONS 87606309LF Vertical Receptacle
The product is a high-quality, low-profile vertical receptacle designed for reliable board-to-board connections. Made from high-temperature glass-filled thermoplastic polyester with UL94V-0 flammability rating, it features a dual-beam contact for low insertion force and signal integrity. Suitable for applications requiring up to 3A DC per contact, it offers a robust 200 mating cycles, withstands operating temperatures from -65°C to +125°C, and features gold or tin plating over nickel for optimal electrical performance. The receptacle's compact design ensures easy integration with a variety of circuit configurations, providing signal protection with a 4-wall contact design and environmental durability.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606309LF Vertical Receptacle Specifications:
- Housing Material: Glass filled thermoplastic polyester
- Housing Color: Blue or black (series dependent)
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27 μm nickel
- Current Rating: 3A max. per contact
- Insulation Resistance: 1x10^6 MΩ min.
- Contact Resistance: 15 MΩ initial, 20 MΩ after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mechanical Durability: 200 mating cycles
- Insertion Force: 1.50 N (150 gf) max for gold contacts
- Withdrawal Force: 0.30 N (30 gf) min
- Insertion Depth: Top entry 3.6mm min. to 6.7mm max., Bottom entry 6mm min.
- Packaging: Plastic boxes or tubes, optional tape-and-reel
Buy the Buy FCI DUBOX™ Vertical Receptacle Part Number 87606309LF Online
Discover the premium DUBOX™ vertical receptacle, engineered for secure, low-force, board-to-board connections. With high-temperature resistant materials, gold or tin plating, and a durable design supporting 200 mating cycles, this receptacle ensures reliable electrical performance from -65°C to +125°C. Compact and stackable, it’s ideal for modern circuit assemblies needing signal integrity and environmental durability. Purchase online today for seamless integration in your electronic projects or manufacturing lines, backed by FCI’s quality and technology standards.
Get FCI DUBOX™ 87606309LF today—designed for robust, reliable circuit connections with low insertion force and high environmental durability.
