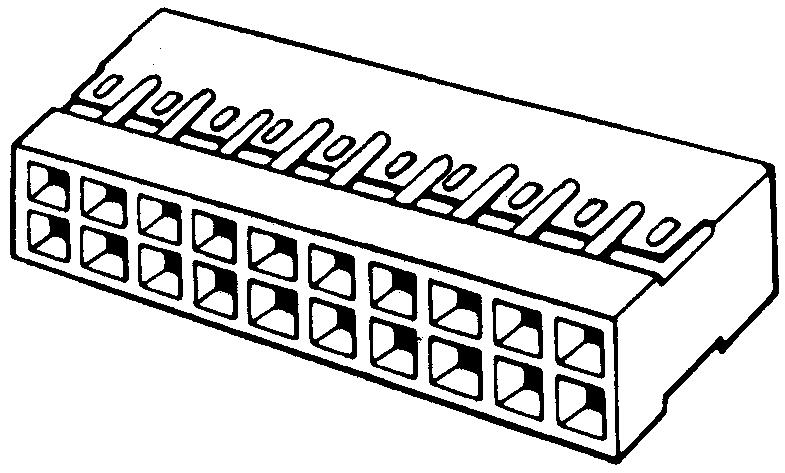

AMPHENOL COMMUNICATIONS SOLUTIONS 65043027LF Wire-to-Board Connector

The Mini-PV 65043 series crimp-to-wire connector system securely connects discrete wires to printed circuit boards, ensuring high reliability and long cycle life. It features a dual-metal PV® receptacle contact that maintains consistent contact pressure through up to 1,000 mating cycles. The industry-standard 0.025-inch (0.635mm) square posts are compatible with various containment, protection, and guidance options on both sides of the connector interface. The wire-side PV® receptacle terminals can be terminated to individual wires or inserted into multiple-circuit MINI-LATCH connector housings, which include optional polarizing keys to prevent mismating. The printed circuit side incorporates shrouded headers with an integral friction feature to secure mating with MINI-LATCH housings, which are also designed with retention features such as side walls and keyways for polarization. The connector is available in single or double row configurations, offering mechanical benefits and cost efficiency. Suitable for applications in sensing, instrumentation, medical devices, avionics, defense, communications, automotive, consumer electronics, and industrial markets.

View 65043027LFDatasheet [pdf]

Buy the FCI PV– Reliable Wire-to-Board Connector for Industrial Applications

Enhance your electronic assembly with the FCI PV series wire-to-board connector system, offering high reliability, extended cycle life, and polarization options. Designed for industrial, medical, and communication applications, these connectors feature dual-metal PV receptacle contacts, industry-standard 0.025-inch square posts, and shrouded headers for secure mating. Available in single or double row configurations with gold or tin plating, they provide excellent electrical performance and durability. Easy to install using compatible crimping tools, ensuring dependable and efficient connections for your critical electronic systems.

Order your FCI Series65043 double row connector today and ensure reliable, high-performance connections for your industrial and communication projects.
