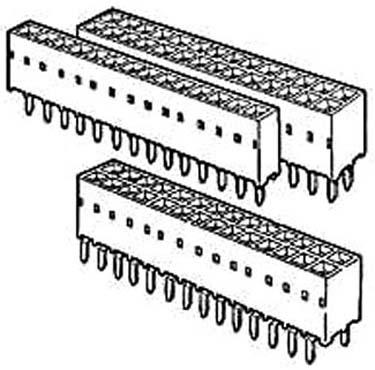

AMPHENOL COMMUNICATIONS SOLUTIONS 87606314LF Vertical Receptacle
The product is a low-profile vertical receptacle featuring a pre-stressed, dual beam contact design for low insertion force and signal protection with a 4-wall contact design. Made from high-temperature, glass-filled thermoplastic polyester with UL94V-0 flammability rating, it is suitable for PCB applications. The contact is copper alloy, gold or tin plated over nickel, providing a current rating of up to 3A DC per contact. It withstands temperatures from -65°C to +125°C, with 200 mating cycles for durability. Designed for reliable electrical connections in various industrial and electronic applications, it ensures signal integrity and mechanical stability.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606314LF Vertical Receptacle Specifications:
- Housing: Glass filled thermoplastic polyester, UL94V-0
- Pin Material: Copper alloy
- Plating: Gold or tin over 1.27 μm nickel
- Current Rating: 3A DC maximum per contact
- Insulation Resistance: 1x 10⁶ MΩ minimum
- Contact Resistance: 15 MΩ maximum initial, 20 MΩ after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: Max 1.50 N per gold contact
- Withdrawal Force: Min 0.30 N per gold contact
- Insertion Depth: 3.6mm min. to 6.7mm max.
- Flammability Rating: UL94V-0
- Environmental Resistance: RoHS compliant
Buy the FCI 87606314LF – Reliable Vertical Receptacle for Industrial Applications
Order the FCI vertical receptacle online today to ensure high-quality, durable, and reliable electrical connections. This low-profile design offers excellent mechanical stability with a dual-beam contact system for low insertion force and signal protection. Constructed from high-temperature thermoplastic, it is suitable for demanding industrial applications. With a current rating of 3A per contact, it withstands temperatures from -65°C to +125°C and supports 200 mating cycles for long-lasting performance. Perfect for electronics needing robust and precise PCB connections.
Buy FCI 87606314LF now and experience unmatched reliability and performance in PCB connection solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606314LF?
You can click on the BUY or RFQ button to purchase 87606314LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606314LF?
You can download the 87606314LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606314LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
