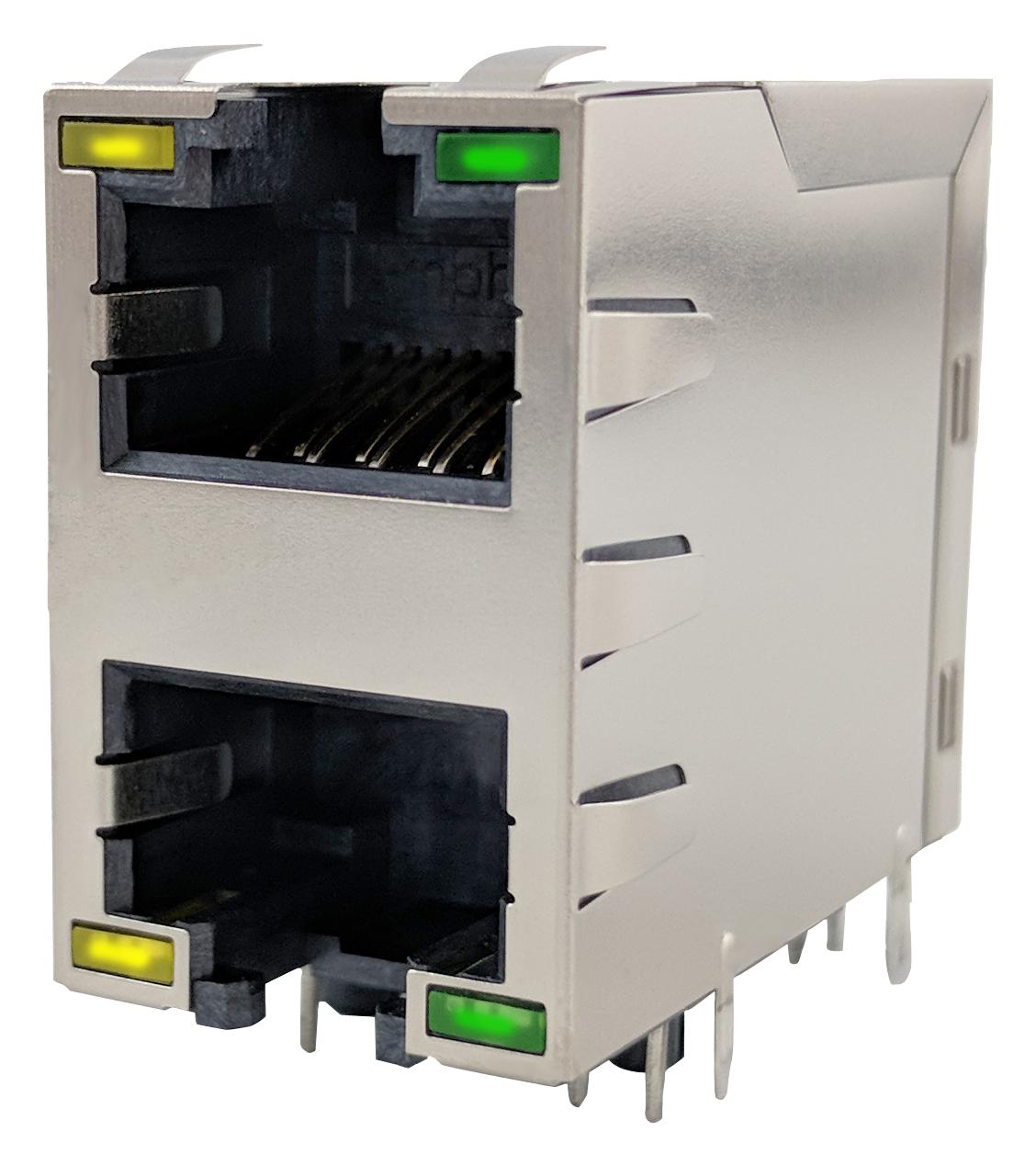

AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288325413 Modular Jack
The RJE1R series of modular jack connectors features two 8P8C ports with options for CATS, CAT5e, or CAT6 performance, suitable for broad application in industrial, communications, and medical markets. Designed for durability with 750 mating cycles and a wide temperature range from -55°C to +85°C, these connectors support high-speed data transfer up to 10G Ethernet, include integrated LEDs with multiple color options, and can accommodate industry-standard plugs with or without shielding, offering flexibility for EMI and environmental resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288325413 Modular Jack Specifications:
- Number of ports: 2 (8P8C each)
- Performance options: CATS, CAT5e, CAT6
- Durability: 750 mating cycles
- Electrical Resistance: Contact Resistance max 20 milliohms
- Insulation Resistance: Min 500 megaohms at 500V DC
- Voltage Rating: 125VAC
- Current Rating: 1.5 Amps
- Temperature Range: -55°C to +85°C
- Material: High-temperature thermoplastic insulator, phosphor bronze contacts with gold and tin plating
- Shielding: Copper alloy, nickel plated or stainless steel
- LED: Forward voltage max 2.6V, current 20mA, multiple color options
- Soldering Temperature: Max 260°C for 5 seconds
- Mechanical: Insertion Force max 5 lbs, pull retention 20 lbs, 750 mating cycles
- Certifications: RoHS, REACH, UL
Buy the Amphenol Series RJE1R Modular Jack: RJE1R288325413
Enhance your network connectivity with the durable and versatile Modular Jack series featuring dual ports supporting CATS, CAT5e, and CAT6 standards. Designed for up to 10G Ethernet, these connectors are ideal for industrial, communication, and medical environments. They include optional LEDs and shielding options, ensuring excellent EMI resistance and environmental resilience. With a robust construction supporting 750 mating cycles and a wide temperature range from -55°C to +85°C, they guarantee reliable performance even in harsh conditions. Easy to install and compatible with industry-standard plugs, they are perfect for diverse applications and future-proof data networks.
Buy Amphenol RJE1R288325413 modular jack now and experience unmatched reliability and performance for industrial and communication applications.
