AMPHENOL COMMUNICATIONS SOLUTIONS 9193131121LF Solderless PCB Connector
The Conan 1.00mm Connector System by Amphenol ICC is a high-performance mezzanine connector designed for industrial environments and PCB board stacking. It offers vertical and right angle configurations with secure mating, audible click, and various sizes from 9 to 69 positions. Made from high-quality materials like phosphor bronze and copper alloy, it supports high-speed data transfer up to 5Gb/s, with a durable life of 30 mating cycles. Ideal for applications such as networking, security, and medical diagnostics, it ensures reliable, space-efficient, and easy-to-assemble connections in harsh conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS 9193131121LF Solderless PCB Connector Specifications:
- Header Material: Phosphor Bronze
- Receptacle Material: Copper Alloy, High Spring
- Housing Material: Cream-colored LCP (UL94V-0)
- Contact Finish: Gold or GXT®; Solder Tail: Pure Tin over 1.27 mm Nickel
- Mating Force: Max 125g per contact; Unmating Force: Min 25g per contact
- Retention Force: Min 44N; Contact Wipe: 0.64mm; Durability: 30 mating cycles
- Insulation Resistance: Min 1000MQ; Contact Resistance: Max 30MQ
- Withstanding Voltage: 600V RMS; Current Rating: 1.0A per contact
- Impedance: 100Ω ±10; Insertion Loss: <1.5dB up to 5GHz
- Operating Temperature: Up to 105°C; Environmental: RoHS compliant, lead-free
- Packaging: Tape and reel, tubes, with options for caps or tape & reel packaging
- Dimensions: Width: up to 5.59mm; Stack Height: 4.15mm to 7.0mm; Length varies with configuration

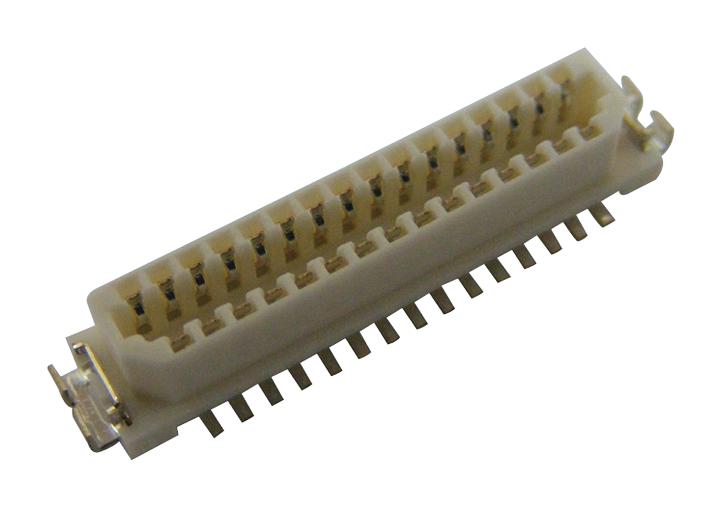

Buy the Amphenol 9193131121LF – Reliable Connector for Industrial Applications
Get the Amphenol ICC Conan 1.00mm Connector System online today and experience a reliable, high-speed connection solution designed for harsh environments. Its robust construction with gold or GXT® finishes ensures optimal electrical performance and long-lasting durability. With options for vertical and right angle configurations, security features like audible click, polarization, and multiple packaging choices, this connector simplifies assembly and enhances reliability. Perfect for networking, security, medical diagnostics, and industrial automation, order now to improve your electronic system’s efficiency and robustness.
Order your Amphenol 9193131121LF Series high-speed, PCB stacking connector today and ensure secure, efficient connections for your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 9193131121LF?
You can click on the BUY or RFQ button to purchase 9193131121LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 9193131121LF?
You can download the 9193131121LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 9193131121LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
