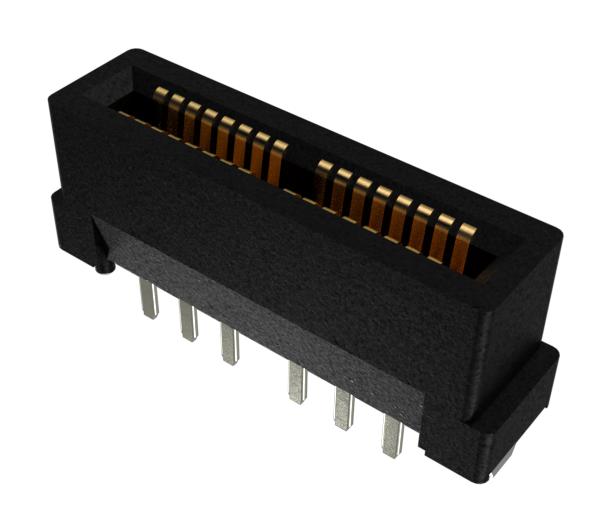

AMPHENOL COMMUNICATIONS SOLUTIONS ME10000101P1011 High Density Card Edge Connector
Mini Cool Edge connectors are high-density, high-speed card edge connectors suitable for small form factor systems. They meet industry standards like SFF-TA-1002, Gen Z, EDSFF, and OCP NIC 3.0, supporting data rates from 32GT/s up to 112G PAM4. These connectors are designed with a 0.60mm pitch, various pin counts, and options for vertical, right angle, and orthogonal orientations. They support power and signal applications, offering space-saving, high-speed, reliable connections for SSDs, NICs, FPGA cards, GPUs, and modules in enterprise and data center environments.
AMPHENOL COMMUNICATIONS SOLUTIONS ME10000101P1011 High Density Card Edge Connector Specifications:
- Pin pitch: 0.60mm
- Current rating: 1.1A per pin
- Number of signal pins: varies from 56 to 280
- Power pins: options include 4C-HP, 4 power pins, 2 power pins
- Supports data rates from 32GT/s to 112G PAM4
- Housing material: High temperature thermoplastic UL 94V-0
- Contact material: Copper alloy
- Contact finish: Gold over Nickel
- Solder finish: Tin over Nickel
- Supports board thickness: 1.6mm or 2.36mm PCB
- Mating cycles: 200
- Dielectric withstand voltage: 300VDC
- Temperature: -55°C to +85°C, with 168-hour life at 105°C
- Mating force: max 0.75N/pin
- Unmating force: min 0.12N/pin
Buy the Buy Amphenol Mini Cool Edge Part Number ME10000101P1011 Online
Order the Amphenol Mini Cool Edge high-density card edge connector online today. Engineered for high-speed data transfer up to 112G PAM4, it features a precise 0.60mm pitch, various pin configurations, and robust contact materials. This connector provides reliable connections for SSDs, NICs, FPGA, and GPU modules, supporting industry standards like SFF-TA-1002 and OCP NIC 3.0. Its space-saving design, metallized contacts, and high durability make it ideal for enterprise, server, and data center applications. Purchase now for quick delivery and technical support.
Get Amphenol Mini Cool Edge ME10000101P1011 today—designed for high-speed, space-efficient connections in advanced enterprise systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ME10000101P1011?
You can click on the BUY or RFQ button to purchase ME10000101P1011 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ME10000101P1011?
You can download the ME10000101P1011 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ME10000101P1011?
AMPHENOL COMMUNICATIONS SOLUTIONS
