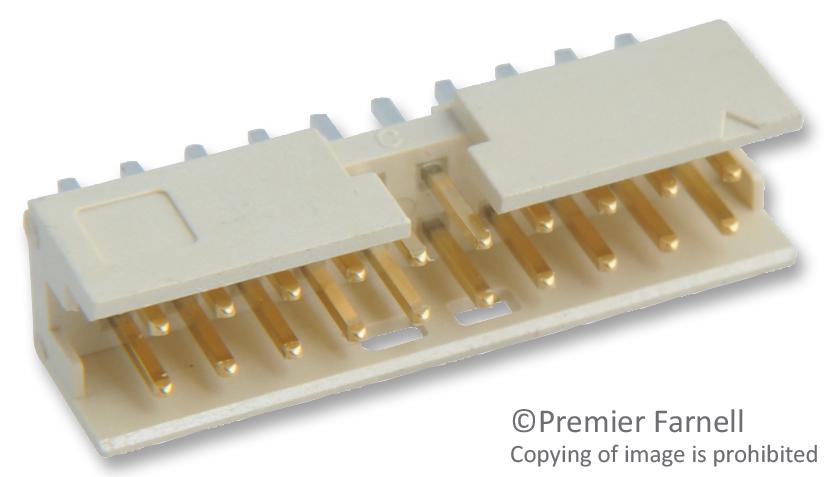

AMPHENOL COMMUNICATIONS SOLUTIONS 98414G0620LF Pin-in-Paste Connector
The product is a high-performance board-to-board connector designed for Pin-in-Paste processes, suitable for SMT manufacturing applications. Featuring high-temperature thermoplastic housing and phosphor bronze pins with gold and tin plating, it ensures excellent electrical performance with a 1A current rating and 10000MΩ insulation resistance. The connector withstands operating temperatures from -55°C to +125°C and complies with RoHS standards. Its compact design, short pin length, and specialized housing facilitate optimal soldering and mechanical strength, making it ideal for industrial, automotive, and automation projects requiring reliable, reflow-compatible connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 98414G0620LF Pin-in-Paste Connector Specifications:
- Housing Material: High temperature thermoplastic
- Housing Color: Black
- Flammability Rating: UL94V-O
- Pin Material: Phosphor bronze
- Plating: Gold and tin over 1.27μm nickel
- Current Rating: 1A continuous
- Insulation Resistance: 10,000MΩ minimum
- Dielectric Withstanding Voltage: 650V
- Operating Temperature Range: -55°C to +125°C
- Pin Retention Force: 7N minimum
- RoHS Compliant
- Compatible with IR reflow soldering processes
- Reflow Profile: TA-842
- Application Specification: TA-895 / TA-896
- Package Options: Tape and reel or tube packaging
Buy the Buy FCI Pin-in-Paste Connector Part Number 98414G0620LF Online
Purchase the FCI Minitek Pin-in-Paste connector 98414G0620LF online today. Designed for SMT manufacturing, this connector features durable high-temperature thermoplastic housing, gold and tin-plated phosphor bronze pins supporting up to 1A current. It withstands operating temperatures from -55°C to +125°C and is RoHS compliant. Its short pin length and specialized housing ensure optimal soldering results and mechanical strength. Perfect for industrial, automotive, and automation applications requiring reliable, reflow-compatible board-to-board connections.
Order your FCI Minitek Pin-in-Paste connector 98414G0620LF today and ensure your SMT manufacturing process is reliable, efficient, and fully compatible with reflow soldering.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 98414G0620LF?
You can click on the BUY or RFQ button to purchase 98414G0620LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 98414G0620LF?
You can download the 98414G0620LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 98414G0620LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
