AMPHENOL COMMUNICATIONS SOLUTIONS CEE009800140301 PCIe Connector
The Cool Edge 1.00mm PCIe connectors by Amphenol ICC offer high-speed board-to-board connectivity with support for PCIe Gen 4 and Gen 5 speeds up to 32GT/s. Its slim, space-saving design with conductive plastic ensures excellent signal integrity and ease of inspection. Suitable for various applications including high-end computing, networking, and server systems, these connectors feature a durable copper alloy contact base, gold over nickel finish, and UL 94V-0 thermoplastic housing. They support multiple pin counts, power and signal ratings, and withstand environmental stresses for reliable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS CEE009800140301 PCIe Connector Specifications:
- Pin Pitch: 1.00mm based on PCIe interface
- Current Rating: 1.1A per pin for power, 0.7A per pin for signal
- Speed Support: 16GT/s, 25GT/s, 32GT/s
- Contact Resistance: Max 30mΩ
- Durability: 200 mating cycles
- Material: Copper alloy contact base, gold over nickel finish
- Housing: High-temperature thermoplastic (UL 94V-0)
- Temperature Life: 105+2°C for 240 hours
- Thermal Shock: 10 cycles between -55°C to +85°C
- Humidity: 24 cycles between 253°C at 80-83% RH and 65-72°C at 50-53% RH
- Dielectric Withstanding Voltage: 500V
- Mating Force: Max 0.6N/pin; Unmating Force: Min 0.06N/pin
- Environmental Certifications: UL Listed
- Packaging: Tray

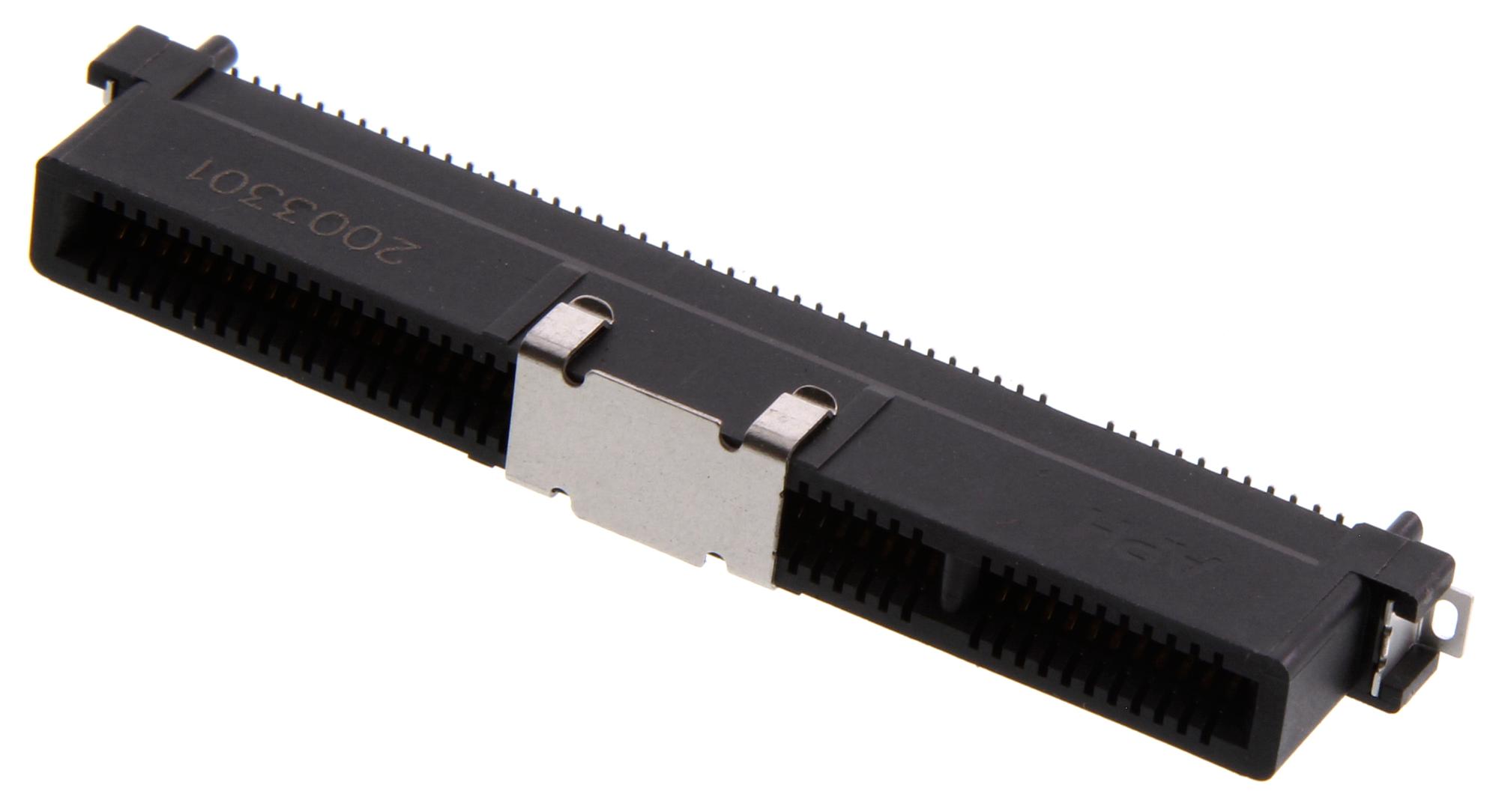

Buy the Amphenol Series PCIe Connector High-Speed Space-Saving Part Number CEE009800140301
Purchase the Amphenol PCIe connector series online today to enhance your high-speed board-to-board connections. These connectors support up to 32GT/s and feature a slim design that saves space on your motherboard. Made from enduring materials with gold over nickel plating, they ensure reliable electrical performance and signal integrity. Suitable for high-end computing, networking, servers, and storage systems, these connectors are easy to inspect and install, offering excellent durability and environmental resistance. Buy now for dependable performance in demanding industrial applications.
Order your Amphenol Series CEE009800140301 high-speed PCIe connectors today and ensure your projects benefit from dependable, space-saving connectivity solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS CEE009800140301?
You can click on the BUY or RFQ button to purchase CEE009800140301 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part CEE009800140301?
You can download the CEE009800140301 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of CEE009800140301?
AMPHENOL COMMUNICATIONS SOLUTIONS
