AMPHENOL COMMUNICATIONS SOLUTIONS 89883306LF Wire-to-Board Connector
The product is a low profile, stackable, wire-to-board and board-to-wire connector system with dual-beam contacts for enhanced reliability. Made from high-temperature thermoplastic (UL94V-0 rated) and phosphor-bronze pins, it offers a current rating of up to 3A per contact. Designed for easy testing with slotted cutouts, it supports up to 200 mating cycles, with a wide temperature range of -65°C to +125°C. The connectors are ROHS compliant and suitable for surface mount and through-hole applications, providing robust electrical and mechanical performance under harsh conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS 89883306LF Wire-to-Board Connector Specifications:
- Housing: High-temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over nickel
- Current rating: 3A DC max. per contact
- Insulation resistance: 1x10^7 MO min.
- Contact resistance: 15 MΩ max. initial, 20 MΩ after environmental tests
- Dielectric withstanding voltage: 1000V RMS
- Operating temperature: -65°C to +125°C
- Mating cycles: 200
- Insertion force: 1.50 N max. per gold contact
- Withdrawal force: 0.30 N min. per gold contact
- Insertion depth: 3.6mm to 6.7mm (top entry), 6mm minimum (bottom entry)
- Flammability rating: UL94V-0
- ROHS compliant
- Packaging: Plastic tubes, boxes, tape-and-reel
- Compatible with vapor-phase, IR reflow, and wave soldering processes

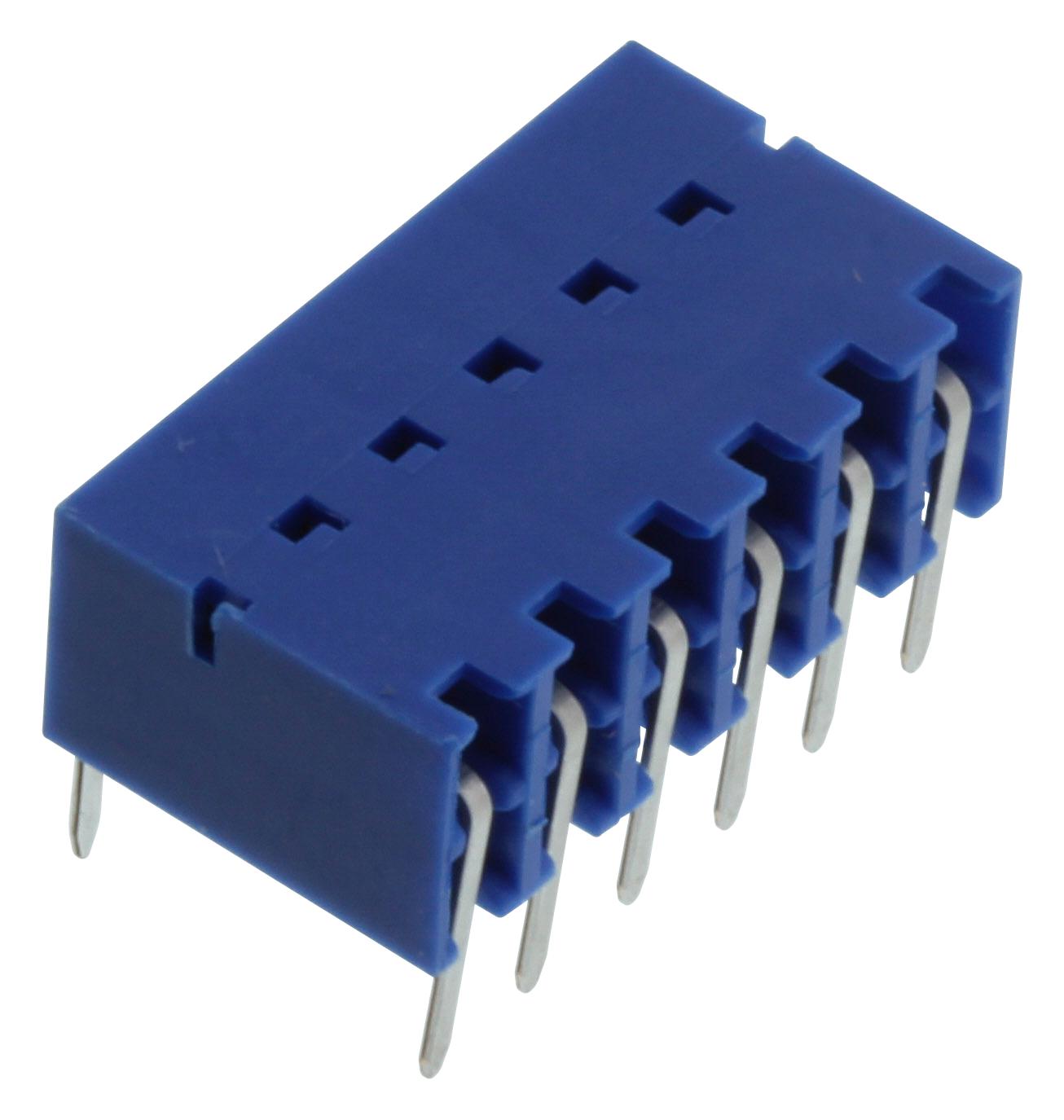

Buy the Buy FCI Wire-to-Board Connector Part Number 89883306LF Online
Purchase the FCI 89883306LF low profile wire-to-board connector online today. This stackable, dual-beam contact system features a durable thermoplastic housing, supports up to 200 mating cycles, and performs reliably across a wide temperature range. Ideal for surface mount and through-hole applications, it offers excellent electrical resistance, easy testing, and ROHS compliance. Enhance your electronic assembly with this high-quality connector designed for demanding environments and long-term performance.
Order your FCI Series89883306LF low profile connector today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89883306LF?
You can click on the BUY or RFQ button to purchase 89883306LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89883306LF?
You can download the 89883306LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89883306LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
