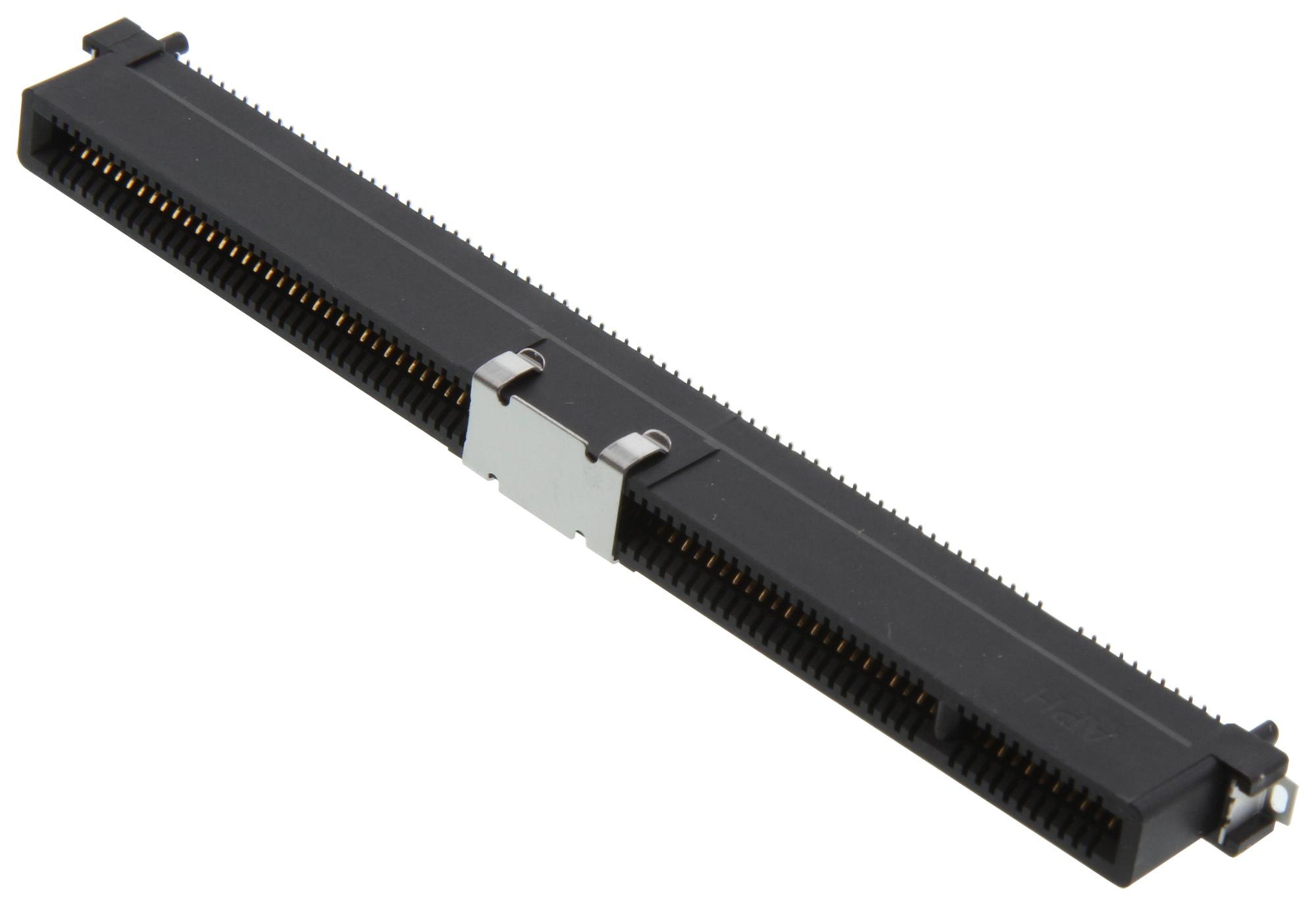

AMPHENOL COMMUNICATIONS SOLUTIONS CEE016400140311 PCIe High-Speed Connector
The Cool Edge 1.00mm PCIe connectors by Amphenol ICC enable high-speed, space-saving board-to-board connections supporting PCIe Gen 4 and Gen 5 up to 32GT/s. These slim, durable connectors feature conductive plastic bases for enhanced signal integrity, a simple housing design for easy AOI inspection, and support multiple configurations including x8, x16, and x24. Ideal for high-end computing, networking, server, and storage applications, they offer excellent electrical and mechanical performance with a current rating of 1.1A per power pin and 0.7A per signal pin, with a maximum lifespan of 200 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS CEE016400140311 PCIe High-Speed Connector Specifications:
- Signal Pin Pitch: 1.00mm
- Current per Pin: 1.1A for power, 0.7A for signal
- Supported Speeds: 16GT/s, 25GT/s, 32GT/s
- Compatible PCIe Slots: x8, x16, x24
- Housing Material: High temperature thermoplastic (UL 94V-0)
- Contact Base Metal: Copper alloy
- Contact Finish: Gold over nickel, Solder Area: Tin over nickel
- Connector Height: 9.60mm, Width: 5.80mm, Length: 95mm
- Operating Temperature Range: -55°C to +85°C
- Electrical Resistance: Max 30mΩ, Dielectric Voltage: 500V
- Mechanical Durability: 200 mating cycles
- Environmental Resistance: Thermal shock, humidity, temperature life
- Packaging: Tray
Buy the Amphenol ICC – Reliable PCIe Connectors for Industrial Applications
Enhance your electronic systems with Amphenol ICC’s PCIe high-speed connectors. These space-efficient, durable connectors support up to 32GT/s, ensuring fast data transfer for servers, networking, and high-end computing. Their slim design saves valuable motherboard space and allows for easy inspection, making them ideal for compact, high-density applications. Featuring gold-plated contacts and robust thermoplastic housings, they guarantee reliable electrical performance across multiple mating cycles. Buy online today for superior signal integrity and seamless integration in your next project.
Buy Amphenol ICC PCIe Cool Edge connectors now and experience unmatched high-speed performance and space-saving design for advanced computing systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS CEE016400140311?
You can click on the BUY or RFQ button to purchase CEE016400140311 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part CEE016400140311?
You can download the CEE016400140311 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of CEE016400140311?
AMPHENOL COMMUNICATIONS SOLUTIONS
