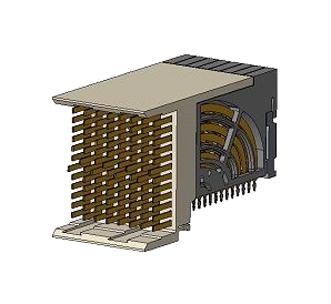

AMPHENOL COMMUNICATIONS SOLUTIONS 10156109102LF Backplane Connector System
The AirMax VS2 connector system is designed to provide a migration path from AirMax VS for speeds up to 20Gb/s, offering a margin of safety for 802.3ap system performance. It leverages design features from AirMax VS and VSe connectors to achieve improved signal integrity and mechanical attributes. The shieldless design with closely coupled differential pairs yields low loss and low crosstalk. The connectors are mating-compatible to both AirMax VS and AirMax VSe connectors, allowing for cost savings and the use of legacy equipment. They are suitable for backplane, midplane, and coplanar applications and are available with different pin configurations and compliant pin sizes.
AMPHENOL COMMUNICATIONS SOLUTIONS 10156109102LF Backplane Connector System Specifications:
- contacts: High performance Copper Alloy
- contact_finish: Performance-based plating (Telcordia GR-1217-CORE Central Office)
- tail_finish: Tin over Nickel
- housings: High Performance Thermoplastic, 94-V0
- current_rating: 0.5 A/contact
- contact_resistance: ≤60 mΩ (backplane), ≤120 mΩ (coplanar)
- durability: 200 cycles
- mating_force: 0.50N max./contact
- unmating_force: 0.15N min./contact
- compliant_pin_insertion_force: 15N max. (0.4mm hole), 30N max. (0.5mm hole)
- impedance: 100 ohms
- application: GS-20-0305
- product: GS-12-0956
Buy the 10156109-102LF AMPHENOL COMMUNICATIONS SOLUTIONS Backplane Connector System | myMectronic
Purchase the AMPHENOL COMMUNICATIONS SOLUTIONS 10156109-102LF AirMax VS2 connector system securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10156109102LF?
You can click on the BUY or RFQ button to purchase 10156109102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10156109102LF?
You can download the 10156109102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10156109102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
