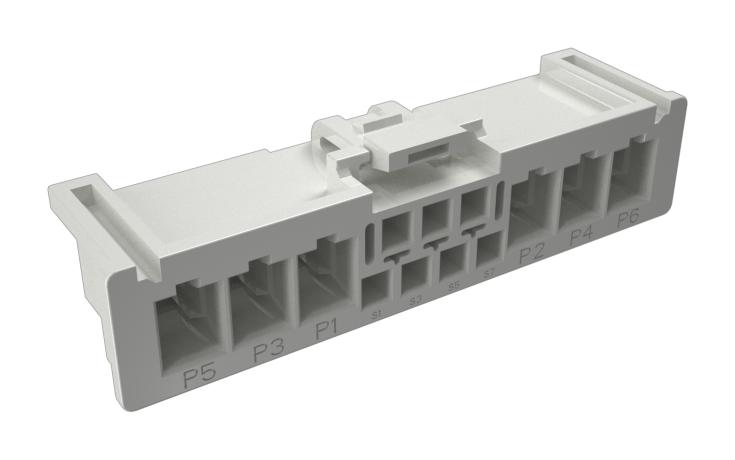

AMPHENOL COMMUNICATIONS SOLUTIONS 10162695107060LF Wire-to-Board Connector
The Amphenol ICC ComboLock® Wire-to-Board Connector System offers a compact, reliable, and modular solution designed for limited space applications. It supports hybrid power and signal configurations with 1.00mm pitch for signals and 3.00mm pitch for power, ensuring secure locking with active latch features. Capable of handling up to 10A per power pin and 1.5A per signal pin, it accommodates wire sizes from 26AWG to 18AWG for power and 30AWG to 24AWG for signals. Suitable for various markets including automation, robotics, and home automation, it features UL 94V-0 housing, rapid durability, and multiple mounting options.
AMPHENOL COMMUNICATIONS SOLUTIONS 10162695107060LF Wire-to-Board Connector Specifications:
- Housing Material: PA66 UL 94V-0
- Crimping Terminal Material: Phosphor bronze alloy
- Electrical Rating: 50V AC/DC, 500VAC dielectric withstand
- Current Capacity: Up to 10A per power pin, 1.5A per signal pin
- Wire Range: 26AWG to 18AWG for power, 30AWG to 24AWG for signal
- Mechanical Durability: 30 mating cycles
- Mating Force: Max 8N for power, Max 3N for signal
- Housing Retention Force: Min 9.8N
- Operating Temperature: -40°C to +105°C
- Dielectric Resistance: 100MQ; Contact Resistance: < 40MQ
- Certifications: UL pending, compliant with GS specifications
- Packaging: Tape and reel for PCB headers, bag for housings, reel for crimp terminals
Buy the Buy Amphenol ComboLock Wire-to-Board Connector Part Number 10162695107060LF Online
Purchase the Amphenol ComboLock Wire-to-Board Connector System online today to benefit from its compact design, secure locking mechanism, and versatile power and signal configurations. This high-quality connector supports wire sizes from 26AWG to 18AWG for power and 30AWG to 24AWG for signals, with a maximum current capacity of 10A per power pin and 1.5A per signal pin. Ideal for automation, robotics, and home devices, it ensures durable, reliable connections in space-restricted applications with UL-approved housing and excellent performance ratings.
Order your Amphenol SeriesComboLock 10162695107060LF today and ensure reliable, space-efficient connections for your electronic projects.
