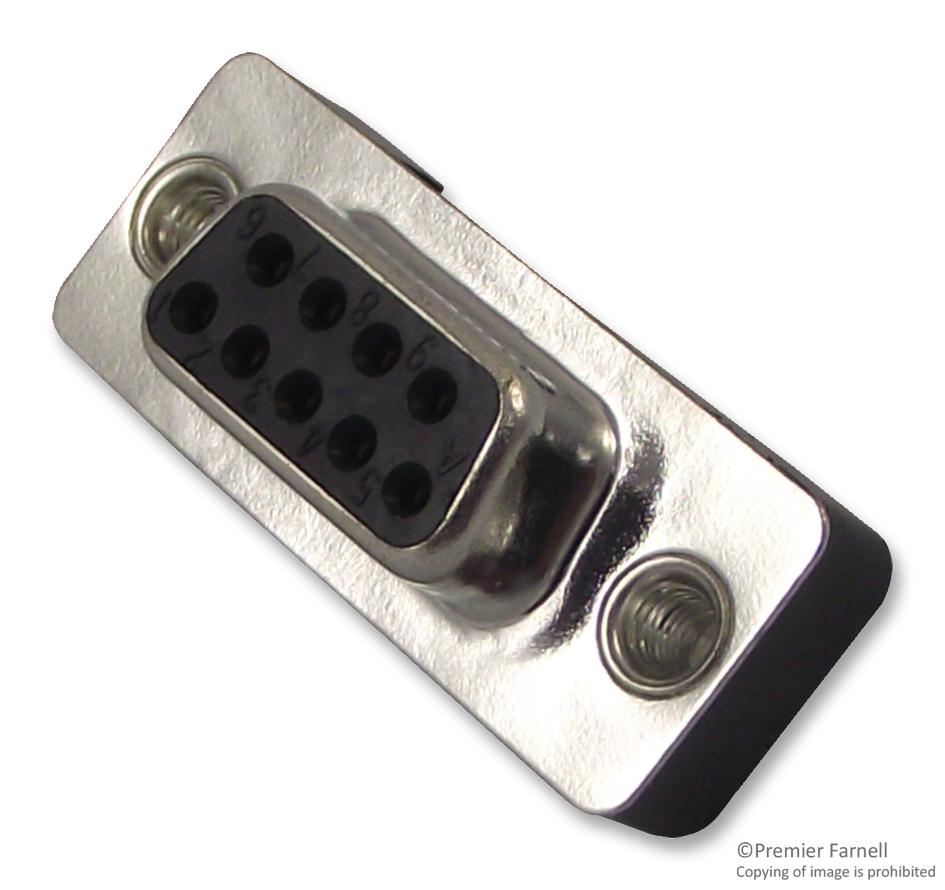

AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEG09SOL2RM5 D-subconnector
The L77TSEG09SOL2RM5 is a high-quality standard D-subconnector featuring a steel shell with tin over nickel plating, suitable for industrial and telecom applications. It incorporates stamped and formed copper alloy contacts with selective gold plating, ensuring excellent electrical performance with a current rating of 5A and a voltage rating of 600V AC/rms. Operating temperature ranges from -55°C to +125°C, making it reliable in harsh environments. The connector supports PCB mounting with recommended dimensions for easy installation and offers RoHS compliance with optional gold flash plating; ideal for rugged, dependable electronic wiring solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEG09SOL2RM5 D-subconnector Specifications:
- Shell Material: Steel with tin over nickel plating
- Contacts: Copper alloy with selective gold plating
- Insulator: Glass-filled thermoplastic, UL 94V-0
- Current Rating: 5A
- Voltage Rating: 600V AC/rms, withstand voltage 1000V AC/rms for one minute
- Insulation Resistance: 5000MQ
- Contact Resistance: 10m max
- Operating Temperature: -55°C to +125°C
- Dimensions: Refer to detailed dimension chart for shell sizes 9, 15, 25, 37 with specific measurements
- Mounting Options: Boardlock with threaded insert or front screwlock, compatible with M3 or #4-40 mounting
- RoHS Compliant: Yes, with optional gold flash plating
Buy the Buy Amphenol D-Sub Connector Part Number L77TSEG09SOL2RM5 Online
Enhance your electronic projects with the durable and high-performance D-subconnector. Featuring a steel shell with nickel plating, gold-plated contacts, and robust construction, this connector is ideal for industrial, telecom, and military applications. Rated for 5A and 600V, it functions reliably in temperatures from -55°C to +125°C. Easy to mount with optional boardlocks or screwlocks, RoHS compliant, and designed for lasting performance. Purchase online now to secure top-tier quality for your demanding applications.
Order your Amphenol SeriesL77TSEG09SOL2RM5 high-reliability D-sub connector today and ensure your electronic assemblies are equipped with durable, reliable, and industry-standard connectors.
