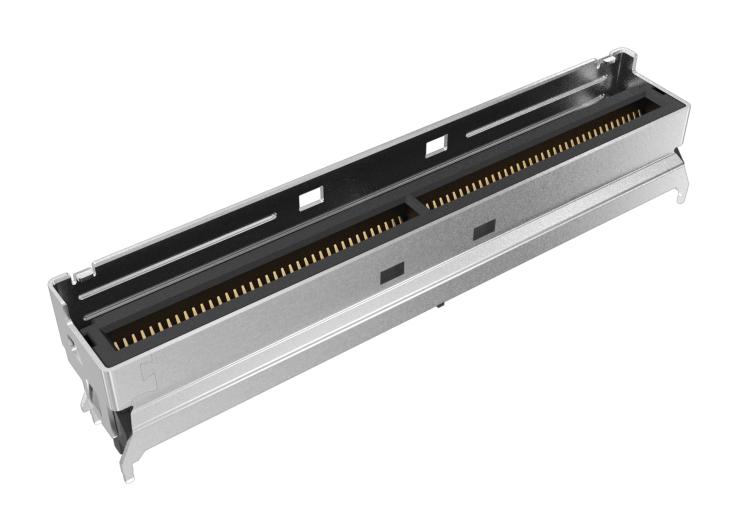

AMPHENOL COMMUNICATIONS SOLUTIONS G98V16312HR High-Speed Edge Connector
The Mini Cool Edge 10 Connector is a 0.60mm pitch high-speed interconnect solution designed by Amphenol. It supports signal transmission up to 56G PAM4, PCIe Gen 4/5, and offers a slim form factor suitable for compact data center and high-performance computing systems. This connector supports both cable and card edge applications, featuring gold-plated copper alloy contacts, high-temperature thermoplastic housing, and durability for 250 mating cycles. It complies with UL standards and provides a scalable, modular, and cost-effective design for advanced electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS G98V16312HR High-Speed Edge Connector Specifications:
- Pitch: 0.60mm
- Supported Data Rates: Up to 56Gb/s PAM4, PCIe Gen 4, PCIe Gen 5
- Configuration: Vertical and right angle options
- Contact Material: Copper alloy with gold over nickel finish
- Housing Material: High temperature thermoplastic (UL 94V-0)
- Electrical Resistance: 30mΩ max. initial
- Dielectric Withstanding Voltage: 300V DC
- Durability: 250 mating cycles
- Mating Force: 0.6N per pin max.
- Unmating Force: 0.06N per pin min.
- Temperature Range: -55°C to 105°C (life and shock testing)
- Certifications: UL listed
- Packaging: Carrier tape, Tape & Reel options
- Pin Counts: 38, 74, 124, 148, 84, 50 pins
- Impedance Options: 85Ω, 92Ω, 95Ω (optional)
Buy the Amphenol G98V16312HR – Reliable High-Speed Interconnect for Industrial Applications
Experience superior high-speed connectivity with the Mini Cool Edge 10 Connector by Amphenol. Designed for demanding electronic applications, it supports PCIe Gen 4 and 5, PAM4 up to 56G, and ensures reliable signal transmission over extended distances. Its slim, modular design simplifies system integration and maintenance, reducing overall costs. Whether for data centers, networking, or high-end computing, this connector offers durability with 250 mating cycles, UL certification, and gold-plated contacts. Purchase online today for a trusted, high-performance interconnect solution that elevates your system design.
Get Amphenol G98V16312HR today—built for precision and long-lasting durability in high-speed electronic systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G98V16312HR?
You can click on the BUY or RFQ button to purchase G98V16312HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G98V16312HR?
You can download the G98V16312HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G98V16312HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
