AMPHENOL COMMUNICATIONS SOLUTIONS GSB4D313302AY1HR USB 4 Type C Connector
The USB 4 Gen 3 Type C connector offers a versatile, high-speed solution compatible with Thunderbolt 4, supporting power delivery up to 100W and data transfer rates up to 40Gb/s. Designed with durable materials like copper alloy terminals, stainless steel shells, and a high-temperature LCP insulating housing, it ensures extended cycle life up to 10,000 mating cycles. Support for 4K UHD 60Hz display, reversible plug orientation, and compliance with RoHS and halogen-free standards make this connector ideal for automotive infotainment, laptops, tablets, docking stations, and home entertainment systems. Its rugged construction ensures reliable performance in demanding environments, providing a compact, all-in-one connection for versatile applications.
AMPHENOL COMMUNICATIONS SOLUTIONS GSB4D313302AY1HR USB 4 Type C Connector Specifications:
- Housing: LCP UL94-VO
- Material: Copper alloy (top and bottom terminal), stainless steel (mid plate, outer shell, main shell, small shell)
- Operating Temperature Range: -40°C to +85°C
- Durability: 10,000 cycles
- Insertion Force: 5~20 N
- Extraction Force: 8~20 N
- Low Level Contact Resistance: 40mΩ max
- Insulation Resistance: 100MΩ min
- Contact Current Rating: 5A max
- Dielectric Withstanding Voltage: 100VAC
- RoHS compliant, Halogen Free
- Packaging: Tape & Reel
- Center Height: 1.58mm, 1.57mm, 0.47mm, -0.1mm depending on model
- Connectivity: Reversible plug, supports Thunderbolt 4, DisplayPort, data, power, audio
- Cable Compatibility: Type C cables with multi-protocol high-speed transfer

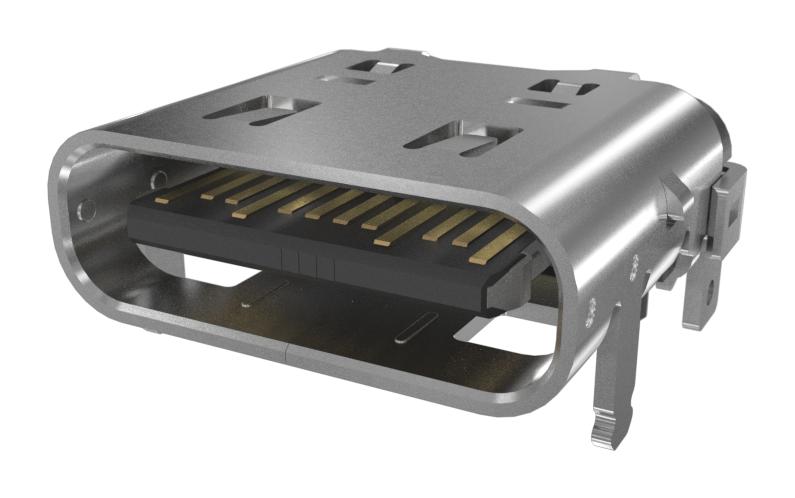

Buy the Buy Amphenol USB 4 Gen 3 Type C Part Number GSB4D313302AY1HR Online
Enhance your electronic systems with the USB 4 Gen 3 Type C connector, supporting 40Gb/s data transfer, 100W power delivery, and 4K UHD display support. Built with durable copper alloy terminals, stainless steel shells, and a high-temperature insulating housing, it guarantees long cycle life of up to 10,000 mating operations. Its design offers reversible plug orientation, compatibility with Thunderbolt 4 and DisplayPort, and meets RoHS and halogen-free standards. Perfect for laptops, tablets, docking stations, and home entertainment applications, ensuring reliable high-speed performance in demanding environments.
Order your Amphenol SeriesG USB 4 Gen 3 Type C connector today and give your next project the reliable, high-speed connectivity it deserves.
