AMPHENOL COMMUNICATIONS SOLUTIONS HM2P07PD5110N9LF High-Speed Modular Connector
The Millipacs® 2mm Hard Metric Series vertical header connectors are modular, high-speed interconnection components designed for backplane, board-to-board, and cable-to-board applications. Certified to IEC standards and compatible with DIN 43356 and IEEE 1301, these connectors feature high current capacity, excellent mechanical durability, and reliable electrical performance. Available in various configurations with signal, power, and coax contacts, they enable scalable and flexible circuit design suitable for communication, data, industrial, medical, and multimedia industries. Easy to assemble, they support high data rates up to 10Gbps with optional shielding and polarization features.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2P07PD5110N9LF High-Speed Modular Connector Specifications:
- Pitch: 2mm
- Contact Material: Copper Alloy
- Contact Plating: Gold / Palladium nickel on mating area and Tin over Nickel on press-fit terminals
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10 MΩ min
- Operating Temperature: -55°C to +125°C
- Mating Force: 0.75 N max per contact pair
- Withdrawal Force: 0.15 N min per contact pair
- Mechanical Durability: up to 500 mating cycles depending on type
- Misalignment Tolerance: Longitudinal ±2.0mm, Transverse ±2.5mm
- Dimensions: Length varies from 25mm to 50mm, with options for signal, power, or coax contacts
- Standards and Certifications: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE, UL, CSA
- Materials: Thermoplastic UL94V0 insulation, optional high-temperature polymer, copper alloy contacts

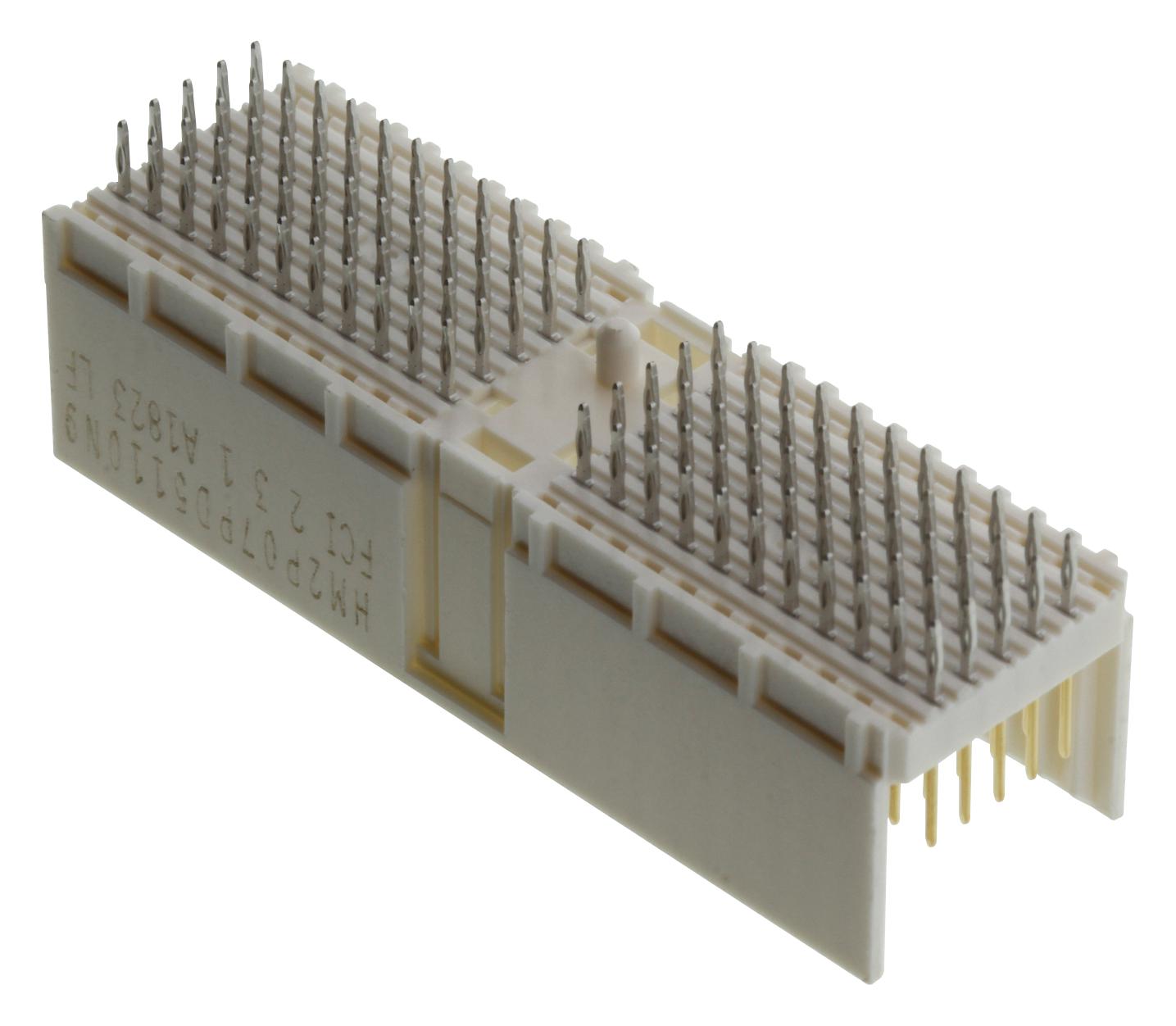

Buy the Buy FCI Millipacs 2mm Hard Metric Series Vertical Header Connectors Part Number HM2P07PD5110N9LF Online
Purchase FCI Millipacs 2mm Modular Connectors today and enjoy reliable high-speed interconnection solutions for backplane, board-to-board, and cable-to-board setups. Designed to meet IEC standards, these connectors provide excellent electrical performance with optional shielding, polarization, and a variety of configurations. They support data rates up to 10Gbps, are easy to assemble, and offer high durability, making them suitable for communication, data, industrial, and medical applications. Order now to benefit from premium quality, scalability, and fast delivery—perfect for your advanced electronic design needs.
Get FCI Millipacs 2mm Hard Metric series connectors today—optimized for high-speed data transmission, reliable power connections, and versatile modular design.
