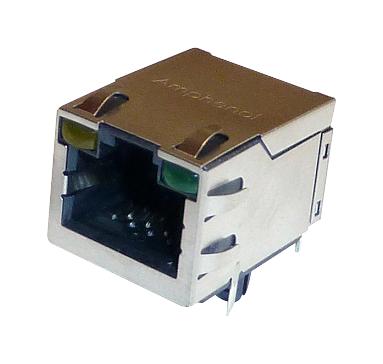

AMPHENOL COMMUNICATIONS SOLUTIONS RJE591885401 Modular Jack
The RJE59 series modular jack is a high-performance CAT6 connector designed for 5G and 10G Ethernet applications, supporting transmission rates up to 250MHz. Made from high-temperature thermoplastic with optional shielding for EMI reduction, these connectors feature right-angle profiles with LED options for network activity and speed verification. Suitable for reflow soldering, they accommodate industry-standard plugs, providing reliable connections in networking hardware, industrial IoT platforms, and data centers, with durability up to 750 mating cycles. Certifications include RoHS, UL, and REACH, ensuring compliance with environmental standards.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE591885401 Modular Jack Specifications:
- Material: High-temperature thermoplastic, UL94V-0, Black
- Contacts: Phosphor bronze, gold over nickel, 6u”, 15u”, 30u”, 50u” plating options
- Shield: Copper alloy or stainless steel, nickel or tin dipped
- LED: Pure tin plated, forward DC current 20mA, forward voltage up to 2.6V
- Electrical: Contact resistance 20 mΩ max., insulation resistance 500 MΩ min. at 500V DC
- Current Rating: 1.5 Amps, Voltage Rating: 125V AC
- Dielectric Withstanding Voltage: 1000V AC, 60 Hz for 1 min.
- Operating Temp: -55°C to +85°C
- Mechanical: 750 mating cycles, insertion force max 5 lbs, pull retention min 20 lbs
- Dimensions: Standard size, supports industry plugs, and reflow soldering, EMI shielding options available
Buy the Buy Amphenol Modular Jack Part Number RJE591885401 Online
Purchase the Amphenol RJE59 modular jack online today to enhance your networking solutions. This high-performance CAT6 connector supports 5G and 10G standards, offering reliable 250MHz transmission speed. Designed with optional EMI shielding and available with various LED options, it ensures optimal network activity and speed verification. Suitable for industrial IoT platforms, data centers, and telecommunications equipment, it features high-temperature thermoplastic construction, easy reflow soldering, and durability up to 750 mating cycles. Order now for dependable, high-speed connectivity.
Order your Amphenol Series RJE59 modular jack today and ensure reliable, high-speed network connections with advanced shielding and LED features.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE591885401?
You can click on the BUY or RFQ button to purchase RJE591885401 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE591885401?
You can download the RJE591885401 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE591885401?
AMPHENOL COMMUNICATIONS SOLUTIONS
